DAMN 505-XT Ambient Industrial Air Filtration Unit

DAMN 505 Series Ambient Air Cleaners

The DAMN 505 Series is a high-capacity ambient air cleaner designed to quietly remove dust, smoke, odors, and fine particulate from your workspace. Each self-contained unit uses a pass-through design, pulling dirty air in one end and discharging cleaned air from the other, and comes standard with a washable foam pre-filter, high-efficiency 95% multi-pocket bag filter, variable speed control, an installed set of eyebolts for hanging, and a 10 foot power cord for simple plug-and-play installation.

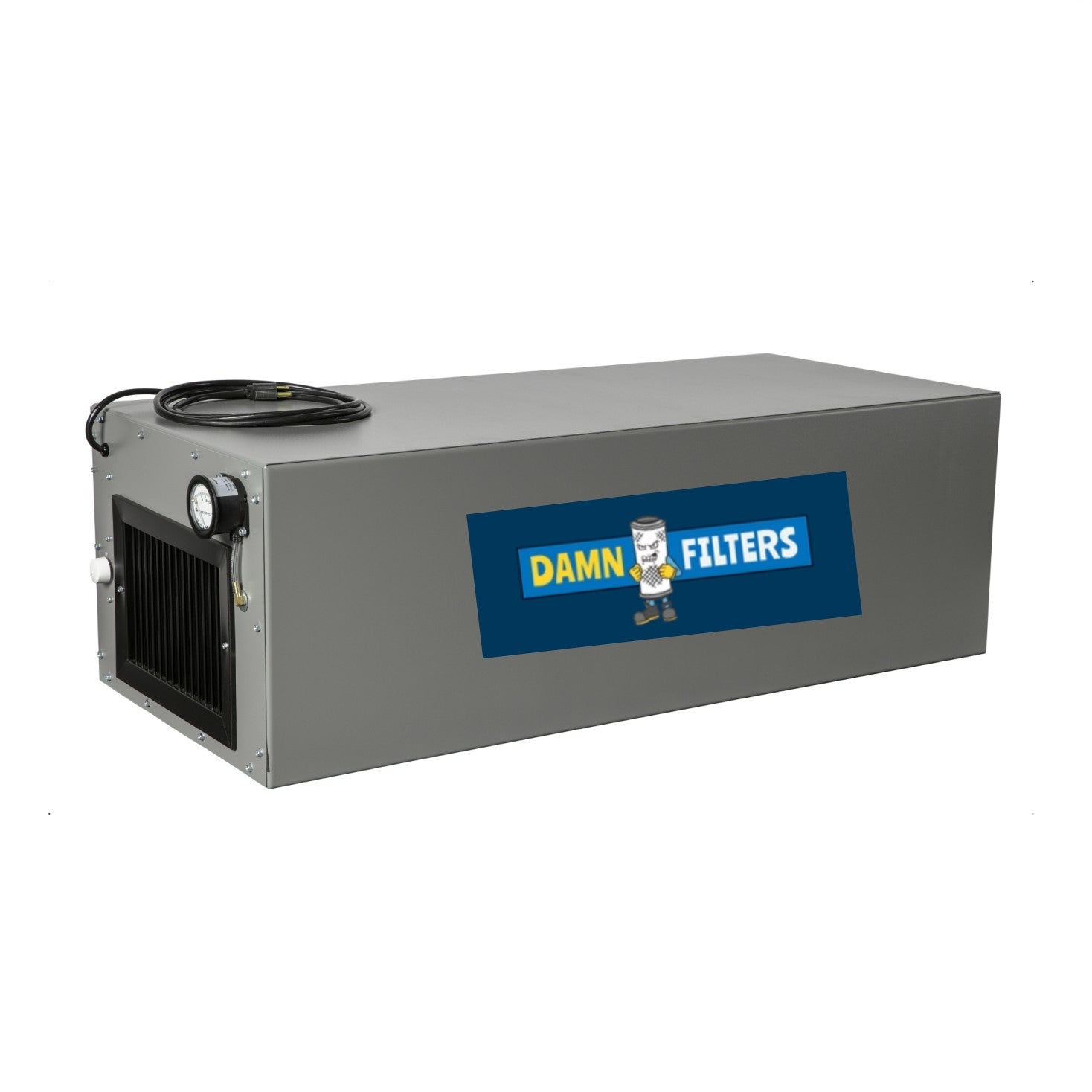

Note: The pressure gauge shown in some product images is an optional add-on and is not included with the standard configuration.

These industrial air cleaners are ideal for woodworking shops, grinding and fabrication areas, personal workshops, art studios, offices, smoking rooms, bars, classrooms, ceramics and clay studios, cannabis processing spaces, and general manufacturing environments where cleaner air and reduced airborne dust are a priority.

What Problems the DAMN 505 Series Solves

• Reduces airborne woodworking dust from saws, sanders, and CNC machines
• Captures grinding dust and fine particulate that traditional shop fans just move around
• Helps control silica dust in clay reclamation and ceramics applications
• Removes smoke and odors from cigars, cigarettes, and light industrial processes
• Improves overall indoor air quality in classrooms, labs, makerspaces, and small shops
• Provides ambient air cleaning without ductwork or taking up floor space

DAMN 505 Series Model Comparison

Model	Best For	Filtration Type	Airflow (CFM)	Odor / VOC Control	Key Benefit

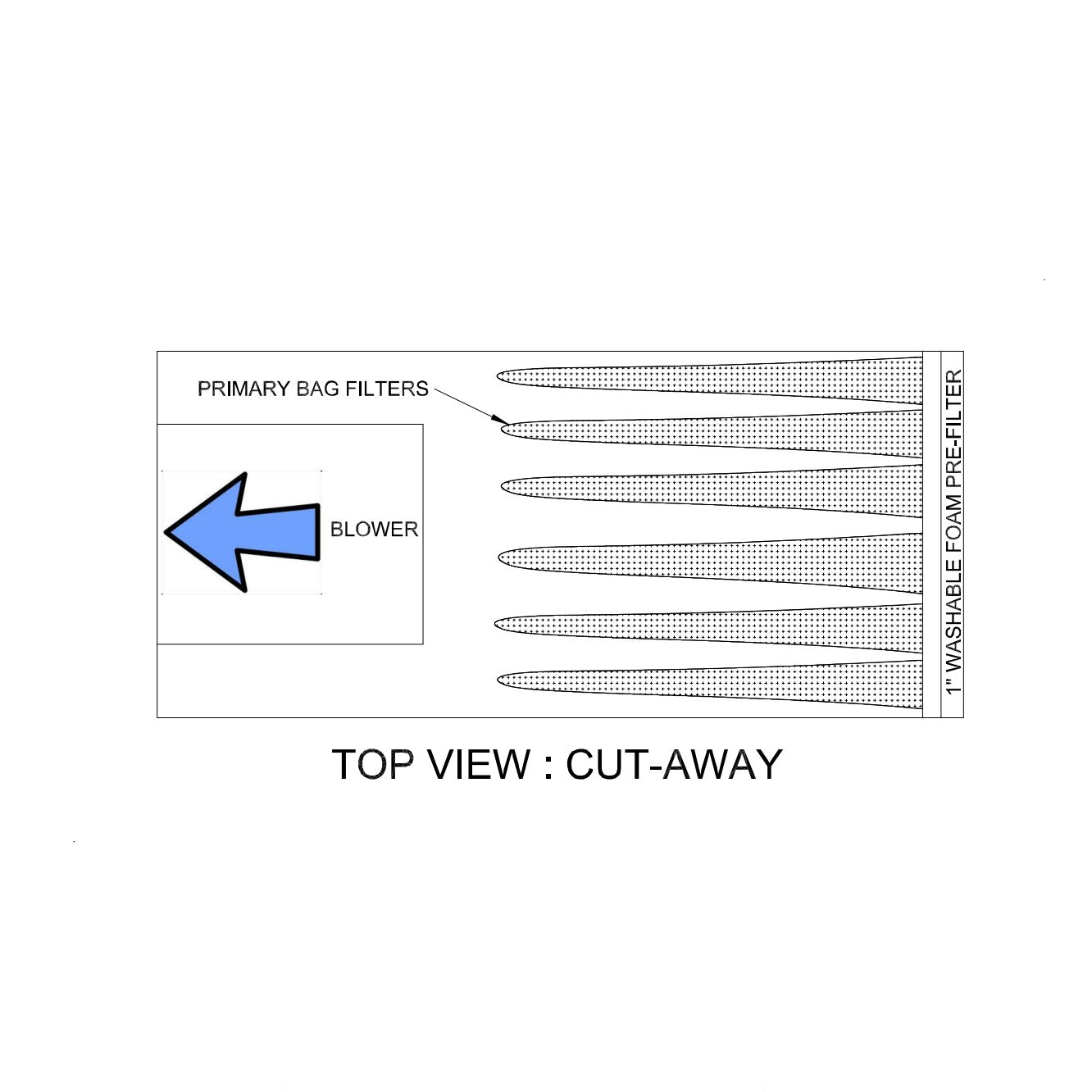

DAMN51QT-S (Standard)	General dust and particulate	Foam pre-filter + 95% bag filter	1100 CFM	Minimal	Cost-effective ambient dust control

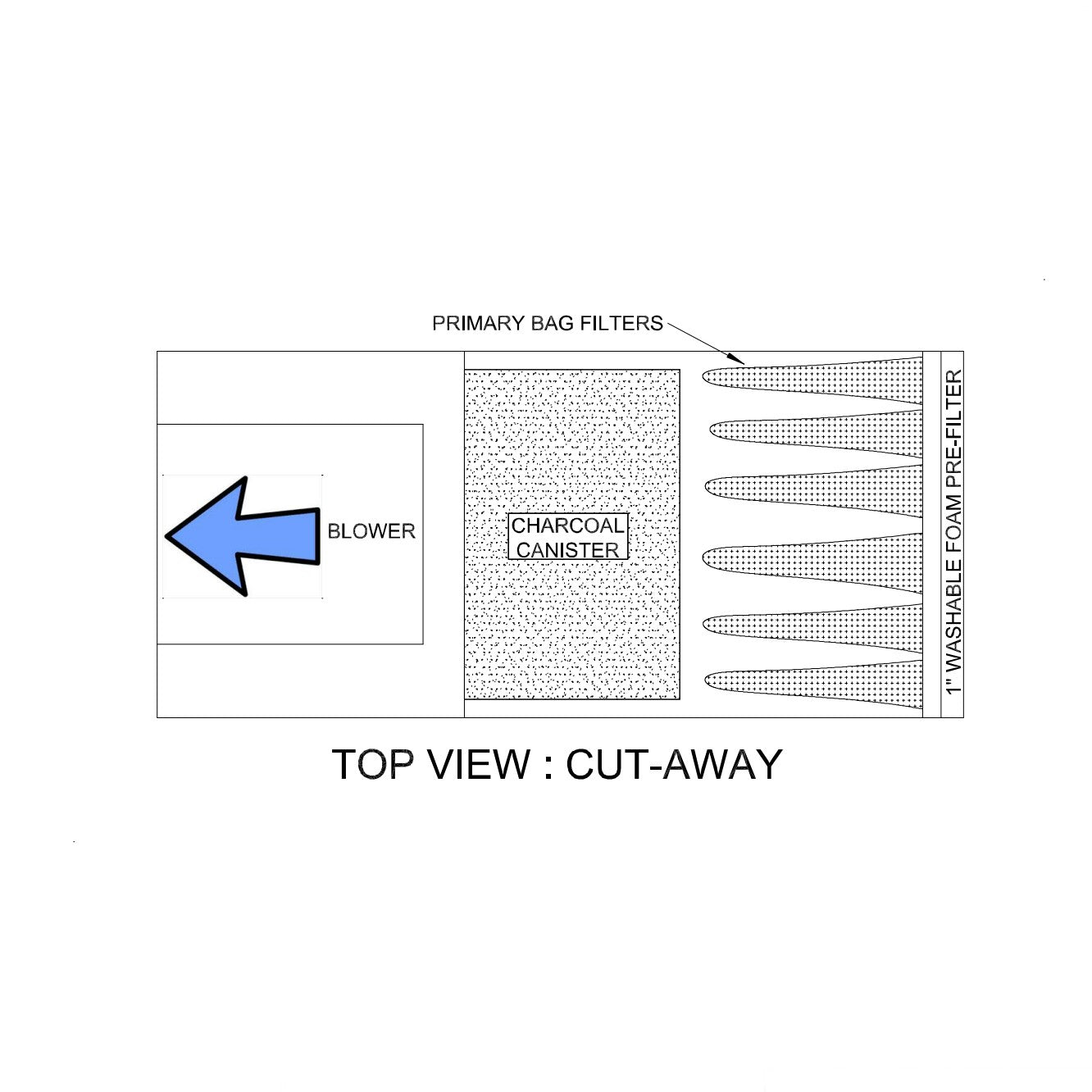

DAMN51QT-CC (Charcoal Canister)	Dust plus odor and smoke applications	Foam pre-filter + 95% bag filter + charcoal canister	675 CFM	High	Charcoal canister for broad odor and vapor control

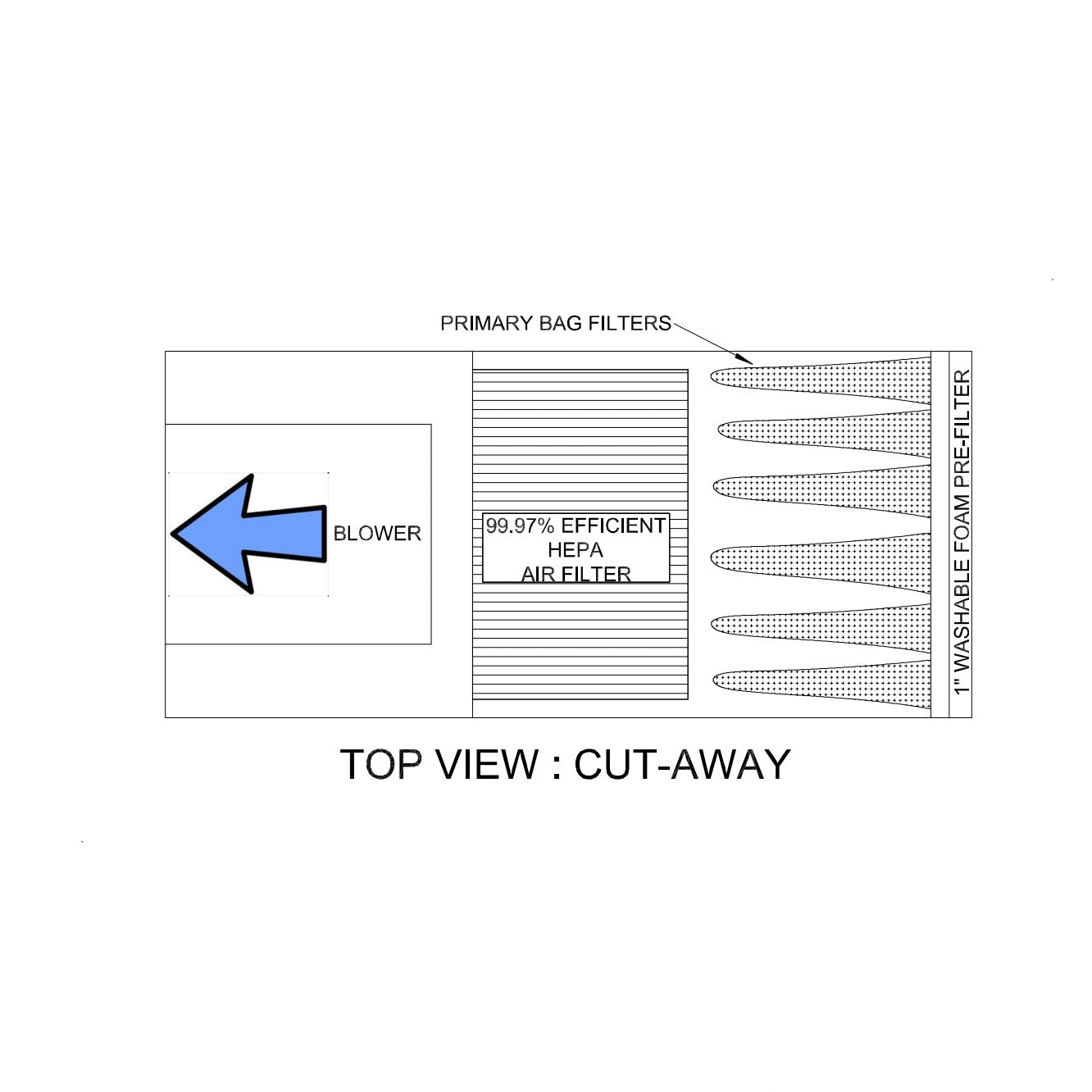

DAMN51QT-HE (HEPA)	Fine particulate and silica dust	Foam pre-filter + 95% bag filter + HEPA after filter	675 CFM	Low	99.97% efficiency at 0.3 micron for critical particle control

DAMN 505 Series Technical Specifications

Specification	DAMN51QT-S (Standard)	DAMN51QT-CC (Charcoal Canister)	DAMN51QT-HE (HEPA)
Dimensions	20 inches W x 15 inches T x 44 inches L	20 inches W x 15 inches T x 44 inches L	20 inches W x 15 inches T x 44 inches L
Weight	95 lbs	135 lbs	125 lbs
Pre-filter	(1) 1 inch washable foam	(1) 1 inch washable foam	(1) 1 inch washable foam
Primary Bag Filter	(1) 95%, 24 inch 6-pocket bag (30 sq ft)	(1) 95%, 12 inch 6-pocket bag (15 sq ft) with 18 lb granular charcoal module	(1) 95%, 12 inch 6-pocket bag (15 sq ft) with 12 inch 99.97% HEPA after filter
Volume (CFM)	1100 CFM	675 CFM	675 CFM
Motor	1/4 HP PSC with thermal overload; 115/1/60; 3.8 amps	1/4 HP PSC with thermal overload; 115/1/60; 3.8 amps	1/4 HP PSC with thermal overload; 115/1/60; 3.8 amps
Blower	9 x 9 direct drive, variable speed	9 x 9 direct drive, variable speed	9 x 9 direct drive, variable speed
Power	10 foot power cord, single phase	10 foot power cord, single phase	10 foot power cord, single phase
Construction / Paint	16 gauge steel; gray chemical resistant powder coating	16 gauge steel; gray chemical resistant powder coating	16 gauge steel; gray chemical resistant powder coating
Noise Level at 5 feet	48–65 dBA	48–65 dBA	48–65 dBA
Application	DAMN51QT-S – General ambient air cleaning	DAMN51QT-CC – Ambient air cleaning for odor applications	DAMN51QT-HE – Ambient air cleaning with HEPA final filtration

Applications

• Woodworking dust (table saws, planers, sanders, CNC routers)
• Grinding dust and fine metal or composite particulate
• Environmental particulate and general airborne dust
• Clay reclamation and silica dust control in ceramics studios
• Cigar and cigarette smoke in lounges or designated areas
• Odors and fumes from finishing, printing, or small process work
• General smoke, odors, and particulate contaminants in shops, studios, and labs

Features

• Self-contained unit — no ductwork required
• Pass-through design: dirty air in one end, clean air out the other
• Variable speed control to dial in airflow for your space
• Disposable filters for simple, low-cost maintenance
• Includes installed eyebolts for hanging (customer may request alternate mounting)
• Easy access for filter changes and service
• Four-way louvers for directional airflow control
• Durable 16-gauge powder-coated steel construction
• Multiple filter configurations: standard, charcoal canister, HEPA
• Lightweight enough to relocate as your shop layout changes

Options

• Pressure gauge / filter change indicator (Magnehelic style gauge)
• Silencer with 4-way louver (reduces sound by 6–8 dBA)
• Wall-mount bracket system
• Chain, Q-Links, and eyebolt hanging kit
• Disposable pleated pre-filter upgrade
• Needlepoint Bipolar Ionizer Module

Installation

• Hung with included eyebolts using chains or cable
• Installed using optional wall bracket system
• Designed for ambient air cleaning — typically mounted overhead

Which DAMN 505 Model Should I Choose?

• Choose DAMN51QT-S for general airborne dust and particulate control in woodworking, grinding, fabrication, and general shop environments.
• Choose DAMN51QT-CC for odor applications — smoke, fumes, and VOCs where you want charcoal-based odor and vapor control.
• Choose DAMN51QT-HE if you need fine particulate or silica dust control with HEPA-level filtration (99.97% at 0.3 micron).

Frequently Asked Questions

How much airflow does the DAMN 505 Series provide?

The DAMN51QT-S delivers about 1100 CFM, while the DAMN51QT-CC and DAMN51QT-HE provide approximately 675 CFM each.

Can the DAMN 505 Series help with silica dust?

Yes — choose the DAMN51QT-HE model, which includes a 99.97% efficient HEPA final filter.

What is the difference between the CC and HE models?

DAMN51QT-CC uses an 18 lb activated charcoal canister for odor and vapor control applications. DAMN51QT-HE uses a true HEPA final filter for fine particulate and silica dust control.

How is the unit installed?

All units include installed eyebolts for hanging from chains or cable. An optional wall-mount bracket is available.

How often do filters need to be changed?

Filter life depends on dust load. The washable foam pre-filter extends the life of the bag filter. Adding a pressure gauge helps identify when filters need replacement.

All equipment purchases may require a 50% down payment.

DAMN Filters offers a full line of dust collection and ambient air filtration equipment.

If you need help choosing the correct DAMN 505 model, call (844) 605-3266 or contact us.

---
