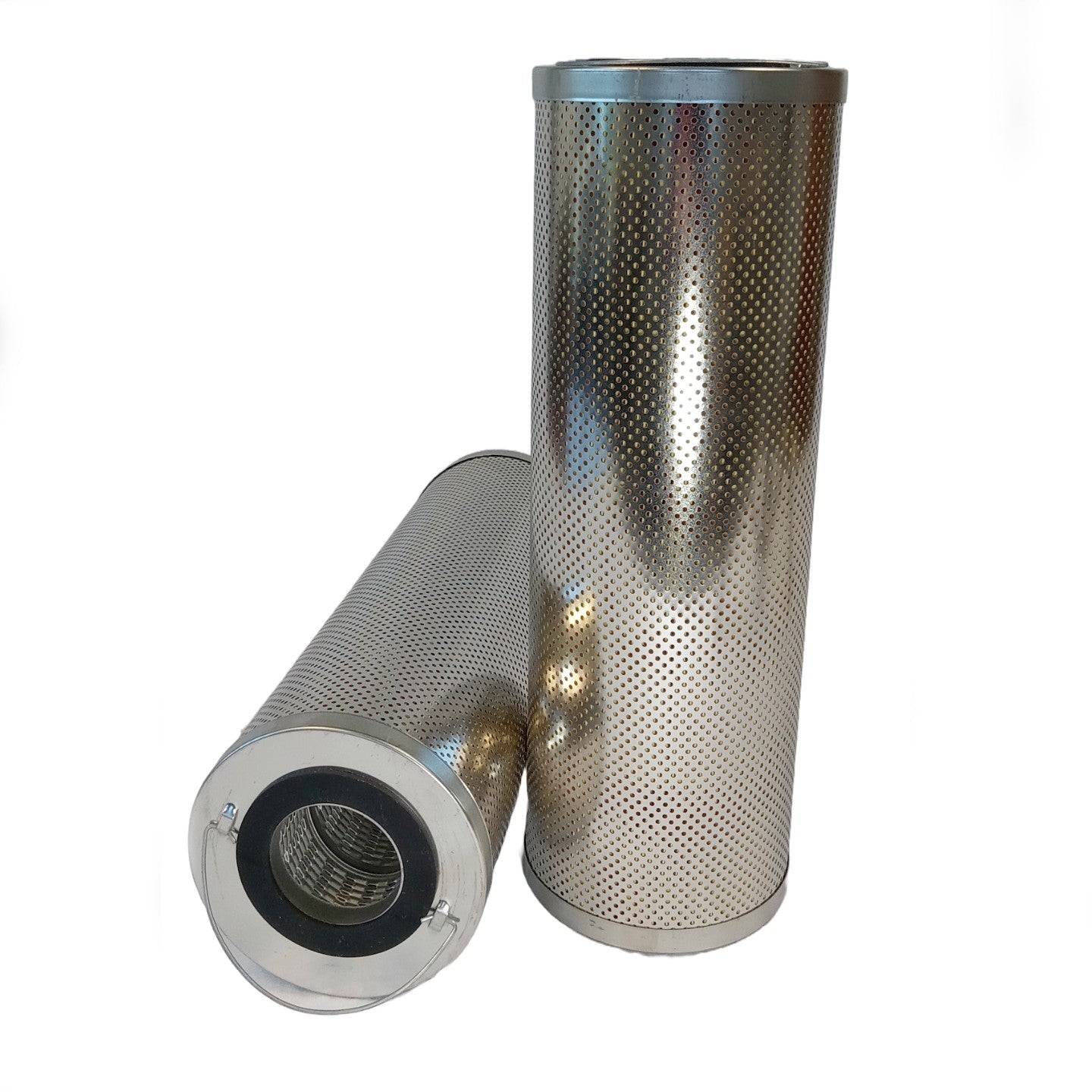

IF618 Series Hydraulic Replacement Filter 6 pack

IF618 Filter Specs

This filter features premium resin-impregnated cellulose media for economical filtration and high dirt-holding capacity, with electroplated steel components and Buna-N gaskets for a reliable seal. It withstands up to 150 psi, handles temperatures to 225°F, and outperforms major competitors in service life and particle removal. Ideal for lubricating oils, hydraulic fluids, cutting fluids, coolants, process water, wastewater, and gasoline.

• Measurements: Diameter – 6” (152 mm), Length – 18” (457 mm), ID – 2.625” (67 mm)
• Filter Media: Resin Impregnated Cellulose
• Nominal Micron Rating: 0.5, 1, 5, 10, 20
• Outer Body: Electro-Tin-Plated Steel
• Top Caps: Electro-Tin-Plated Steel
• End Caps: Electro-Tin-Plated Steel
• Gasket / Grommet Type: Nitrile/Buna-N
• Handle: Yes
• Configuration: Double Open Ended
• Direction of Flow: Outside → Inside
• Type of Adhesive: Polyurethane
• Inner Center Core: Louvered Tin-Plated Steel
• Recommended Change Out/Max OP: 35 PSID / 100 PSI Max Pressure
• Maximum Temperature: 225° F
• Made in the USA

Target machine and filtration systems

• Honing Machines
• Grinders – EWAG, Makino, Studer, Hardinge, Kaast Surface Grinders, etc.
• Cold Heading and Machine Tool Coolant Applications
• Screw Machine Oil Reclaim Systems
• Machines using Hydraulic Fluid and Machining Fluids such as Water Glycols and Coolants
• Machines that Filter Diesel, Gasoline, and other Fuels including Lubricating Oils, Synthetic Lubricants, and Process Fluids
• Water or Oil Filtration Systems – Ebbco, Shelco, Harmsco, MSC Filtration carts, and other systems using cartridge vessels

DAMN Filters offers a full line of Hydraulic filters.

If you don't see the Hydraulic filter you are looking for or need help give us a call at (844) 605-3266 or contact us.
