DD 4' X 6' DOWNDRAFT TABLE

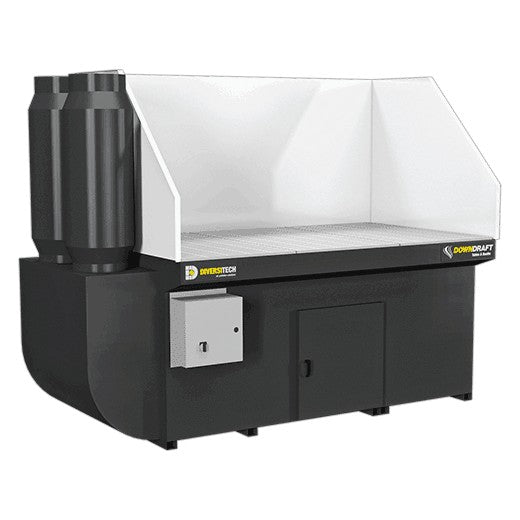

Diversitech DD 4' x 6' Downdraft Table

The Diversitech DD 4' x 6' Downdraft Table is a heavy-duty industrial workstation designed to capture dust, smoke and fumes directly at the source. Available in Open Top or Welding, Grinding & Deburring (WGD) configurations, with additional table styles available for specialized applications.

Standard Features

• Automatic reverse-pulse filter cleaning system
• 72" x 48" ventilated work surface
• Multi-stage spark arrestance baffling
• Dual 10" exhaust silencers
• Hands-free capture-at-source design
• Low-maintenance automatic self-cleaning system
• Nanofiber filtration

Available Configurations

• Open Top DD-4X6: Available in 7.5 HP or 10 HP configurations
• WGD: Welding, Grinding & Deburring configuration available in 7.5 HP or 10 HP

Additional optional table styles are available for Spray Painting and Plasma Cutting applications. Contact DAMN Filters for pricing and help selecting the correct configuration.

Motor & Airflow Options

• 7.5 HP: 3,450 CFM / 325 FPM
• 10 HP: 5,000 CFM / 400 FPM
• Voltage: 230V, 460V or 575V / 3 Phase / 60 Hz

Available Options

• Side walls & middle separator, powder-coated mild steel
• Grounding lug
• Blue cushion grid matting, 72" x 48"
• 3" swivel casters, set of six
• Minihelic gauge
• Set of six 16" x 16" x 1" metal mesh prefilters with flange
• Dual HEPA afterfilters with frame and transition, 99.97% efficiency at 0.3 micron

Applications

Welding, grinding, deburring, cutting, sanding, finishing, soldering and other industrial dust, smoke and fume collection applications. Optional Spray Painting and Plasma Cutting table configurations are also available.

Payment Terms: Equipment purchases require a 50% down payment.

DAMN Filters offers a full line of dry downdraft tables.

Need help selecting the correct downdraft table and options for your application? Call us at (844) 605-3266 or contact us.
