P281426-016-002 Donaldson Replacement HEPA 2400 CFM

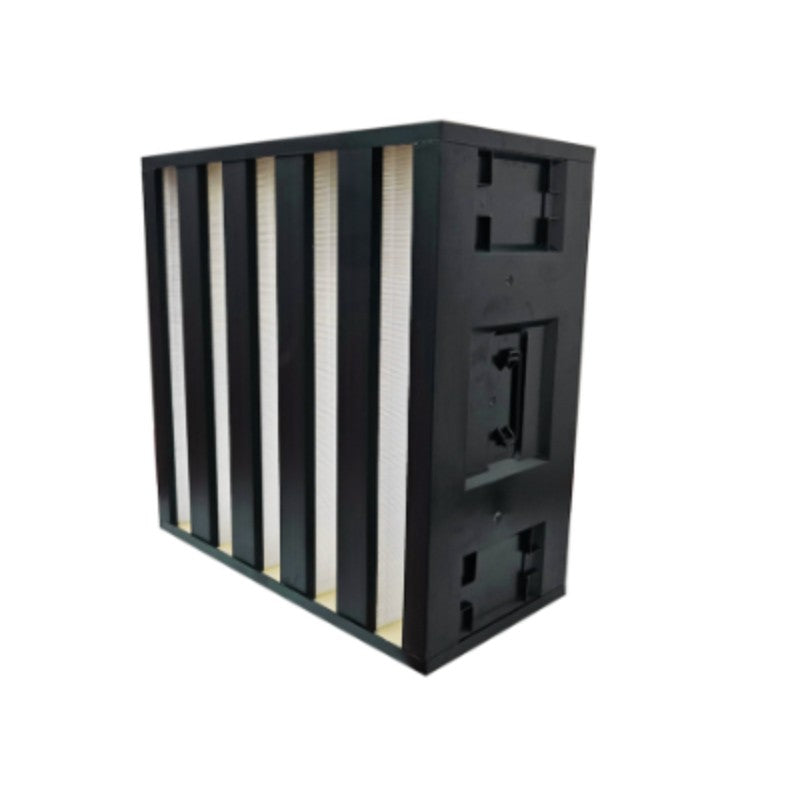

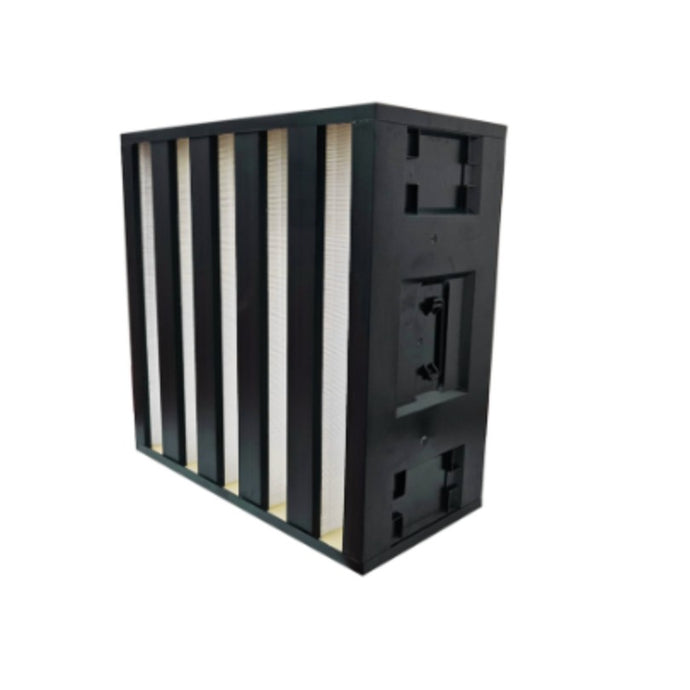

P281426-016-002 HEPA Filter Details

The HEPA HV filter by Excelair is designed for high air volume capacity, using micro glass fiber paper media in a minipleat V-bank construction. It features a plastic frame, and is individually scan-tested per EN 1822 standards for leak-proof performance. The V-shaped mini-pleat design maximizes airflow, reduces pressure drop, and extends filter life, with mounting options for various air handling units.

HEPA Specs:

• Filter Type: Hepa
• Size: 24 x 24 x 12 (610 x 610 x 292)
• Efficiency: 99.99% / H13
• Media: Micro Glass (Donaldson OEM is Fiberglass media)
• Frame: ABS Plastic (6V)
• Gasket: Neoprene, on downstream side
• Rated Airflow: 2400 CFM
• Initial Pressure Drop (IPD): 1.15” Wg
• Final Pressure Drop (FPD): 2” Wg
• Packaging: 1 piece per box

DAMN Filters offers a full line of HEPA filters.

If you don't see the HEPA filter you are looking for or need help give us a call at (844) 605-3266 or contact us.
