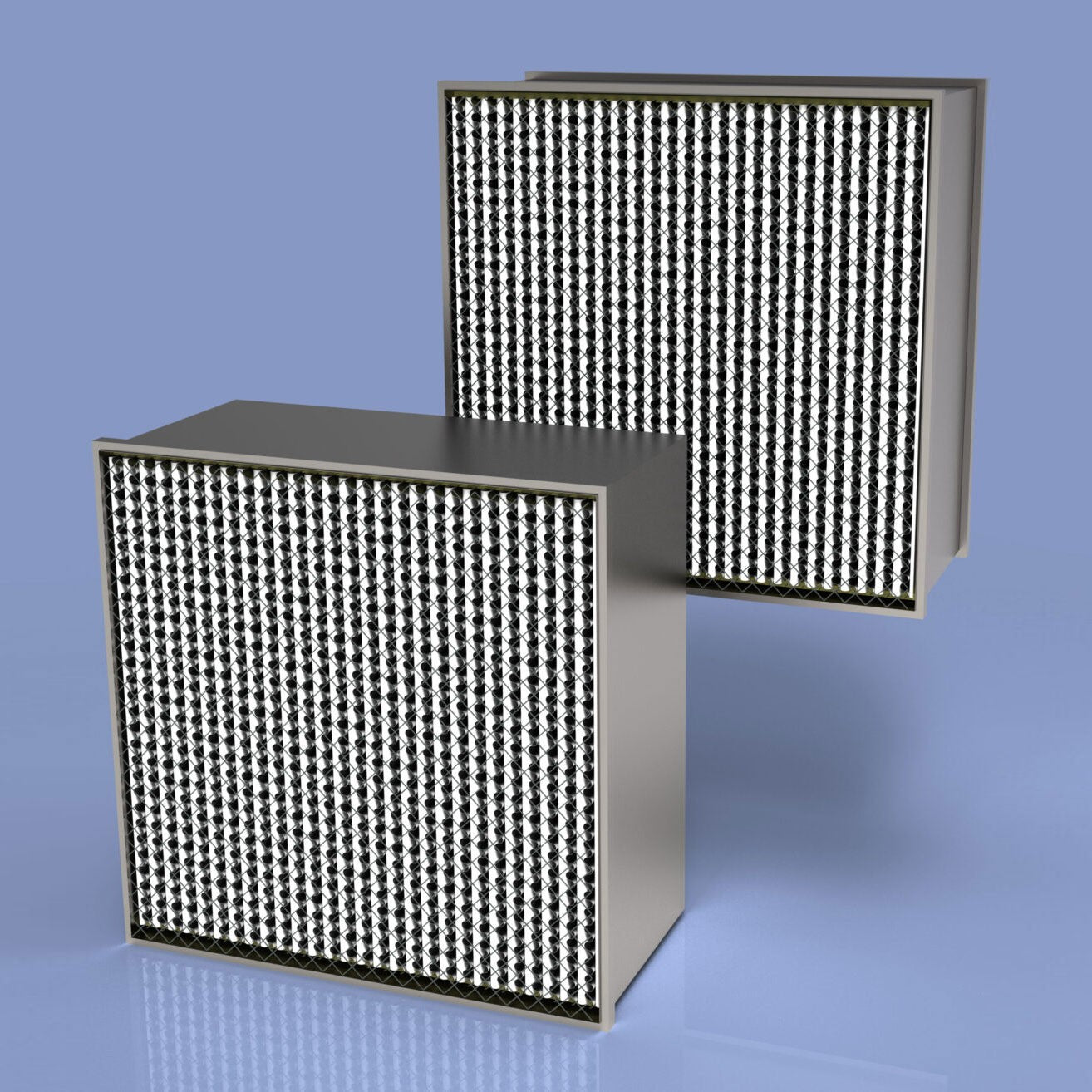

XL90 AAF DuraCel OEM Replacement Gas Turbine Series

AAF XL90 DuraCel Filter Details

The Damn GT series filters are built for tough environments like gas turbines, compressors, and high-velocity HVAC systems. With a rugged 26-gauge galvanized steel frame and glass microfiber media, they offer excellent moisture resistance and durability. Available in standard (RM) and high-capacity (XL) versions with MERV 11 or MERV 14 ratings, each filter includes expanded metal face guards, aluminum separators, and a neoprene gasket, and is rated for up to 180°F and 11" w.g., meeting U.L. Std. 900.

• Part Number: DF242412GT90
• Size H x W x D (Nominal Inches): 24 x 24 x 12
• Size H x W x D (Exact Inches): 23-3/8 x 23-3/8 x 11-1/2
• Rated Velocity (FPM): 500
• Initial Resistance (in. W.G.): 0.65
• Media Square Feet: 105.79
• Rated Velocity (M/H): 9150
• Initial Resistance (Pascals): 161.72

Cross Reference: Glasfloss MAGGDX2424B3P3, AAF XL-90
