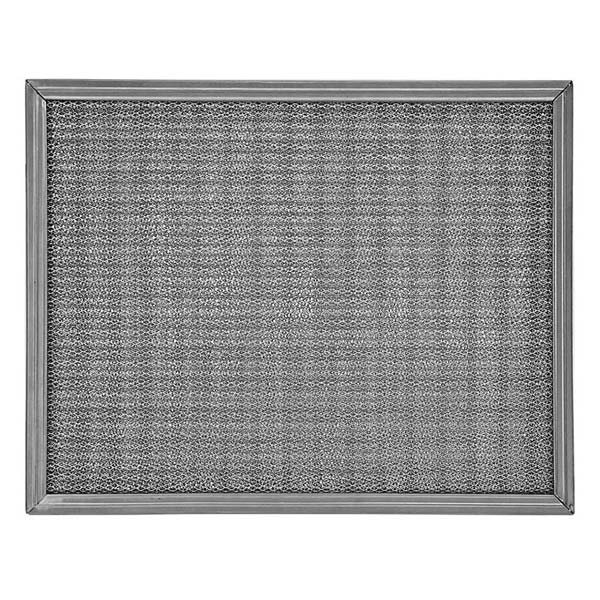

Air Filter Details

Call for availability, 2 pc minimum order.

OEM Make: DAMN Filters
Part Number: DF16201MMSA
Dimensions (inches): 16" x 20" x 1"
Length: 15 1/2"
Width: 19 1/2"
Depth: 7/8"
Material: Filtering element processed from sheet Aluminum, commercially known as 3003-H22, .025 in thickness expanded with .020 strand. Frame made from sheet Aluminum 3003-H14, .025 thickness.
Notes: Medium weight aluminum frame with corner rivets and drain holes. Multiple layer expanded aluminum media. Maximum operating temperature 240 degrees F. Lightweight washable filter. For light industrial or commercial applications.

Available with Bail Handles, add item# DF-HBGI-MMG.

Metal Mesh Filter Cross Reference

Air Handler 2GFR2, 2TE94, Smith Filter Thrift Aire TA16201N, Permatron Model MMA-1", Model MMA-2", American Metal Filter HEA Series, Air Filters Inc Quik-Kleen IPA16201-100M.

Air Delivery Data Chart

If you don't see the Metal Mesh filter you are looking for or need help give us a call at (844) 605-3266 or contact us.
