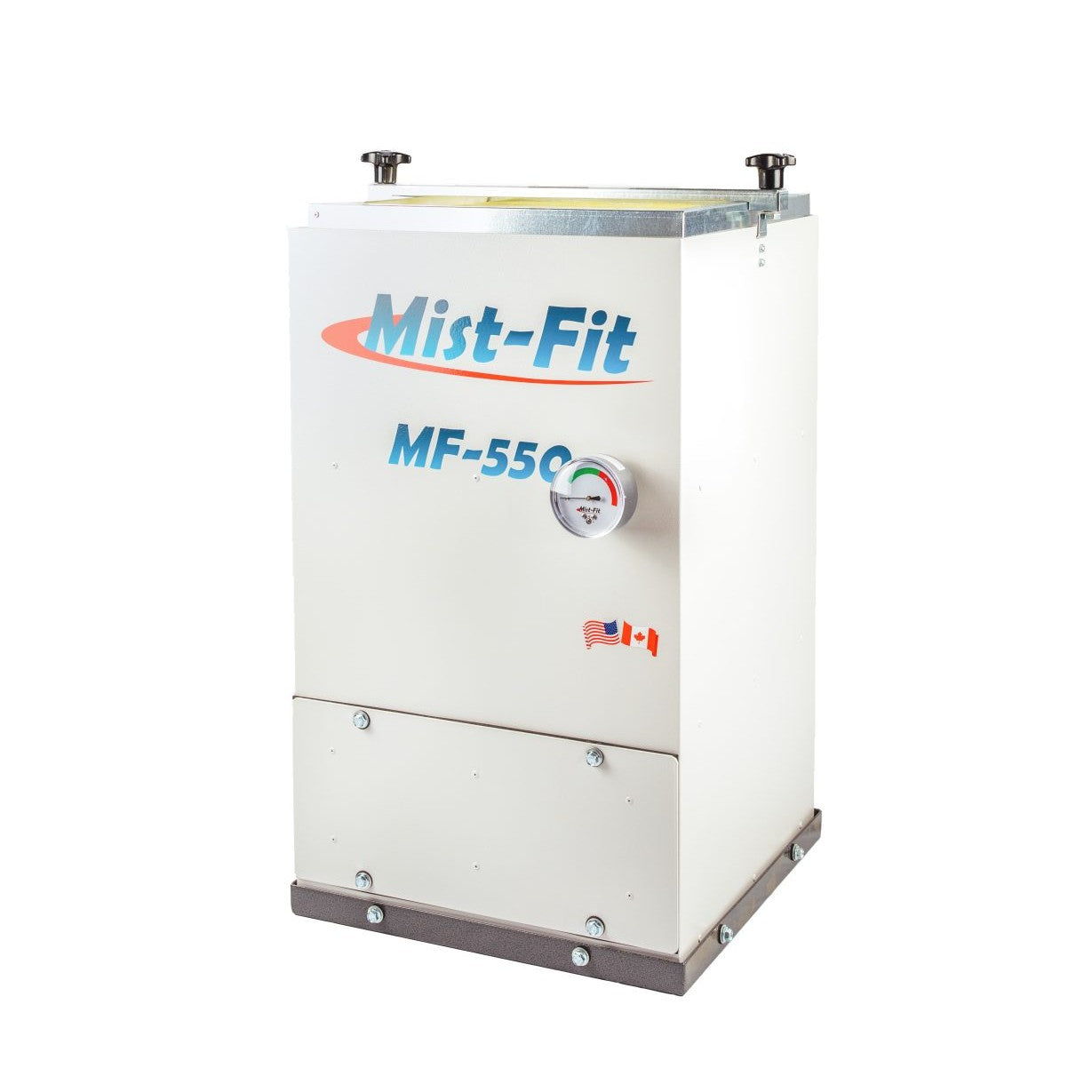

MF-550 Aeroex Mist-Fit Mist Collector

MF550 Details

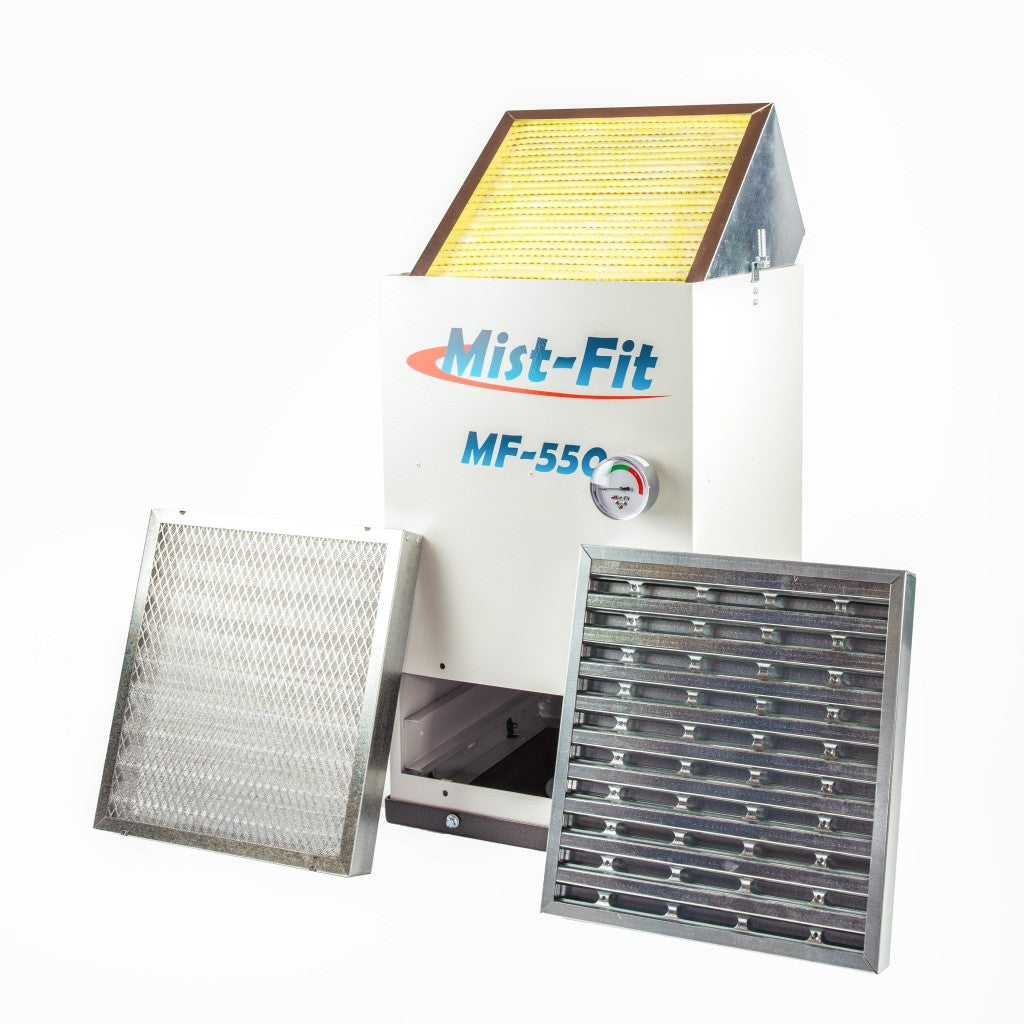

The compact mist collector features a fibre bed filter at an affordable price. Fibre bed filtration has proven to be superior to other filter technologies, making it ideal for high-pressure coolant and oil applications. Designed for efficiency, it allows oil to drain back to the CNC machine. With a footprint of just 15” x 15” and weighing only 65 lbs, it can be easily mounted on a machine. This system effectively eliminates mist, smoke, and fine particles, ensuring a cleaner and safer work environment.

• Delivered Air Flow: 500-600 cfm
• Machine Tool Enclosure: Up to 200 ft³
• Motor: 0.75 hp
• Voltage (amps): 115/1/60 (4.9), 220/1/60 (2.5), 230/3/60 (1.57), 460/3/60 (0.95)
• Inlet Connection: 6” Ø
• Sound: 68 dB(a)
• Coolant Applications: 30 psi, 500 psi, 1000 psi, 3000 psi
• Oil Applications: 30 psi, 500 psi, 1000 psi
• Heavy Smoke Applications: No
• Temp Limit: 125ºF / 50ºC
• Weight: 65 lbs / 75 lbs with HEPA filter
• Length: 15"
• Width: 15"
• Height: 26", 30” with 95% HEPA filter, 34” with 99.9% HEPA filter

Not sure what type of mist collector you need? We can help, fill out the Mist Collection Questionnaire.
