24x24x4 Mini Pleat Filter MERV 15 Plastic (3 pack)

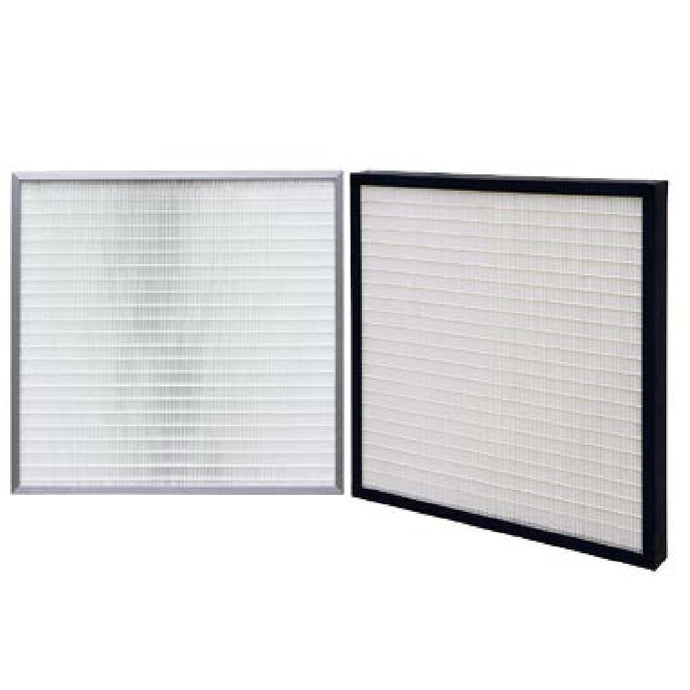

24x24x4 Mini Pleat Filter – MERV 15

The DF Forward Series 24x24x4 MERV 15 mini pleat filter is a high-capacity HVAC panel filter designed for commercial and industrial air handling systems requiring high-efficiency particulate removal, low resistance, and long service life. The compact mini-pleat design provides increased media area while helping reduce energy consumption compared to traditional box and bag filters.

This 24x24x4 MERV 15 mini pleat panel filter is commonly used as a final filter in commercial HVAC systems, air handling units, rooftop units, healthcare facilities, pharmaceutical environments, food processing, clean manufacturing, office buildings, schools, and institutional facilities.

Specifications

• Part Number: DF24244M15B (Box Frame), DF24244M15H (Single Header)
• Nominal Size: 24x24x4
• Actual Size: 23.3" x 23.3" x 3.78"
• Efficiency: MERV 15
• Airflow Capacity: 2000 CFM
• Media: Synthetic mini-pleat media
• Frame: Plastic
• Initial Pressure Drop: 0.28" w.g. (box), 0.32" w.g. (header)
• Final Pressure Drop: 1.5" w.g.
• Media Area: 69.8 sq. ft. (box), 62.8 sq. ft. (header)
• Operating Temperature: Up to 176°F
• Sealant: Polyurethane
• Separator: Hot Melt
• Gasket: Optional

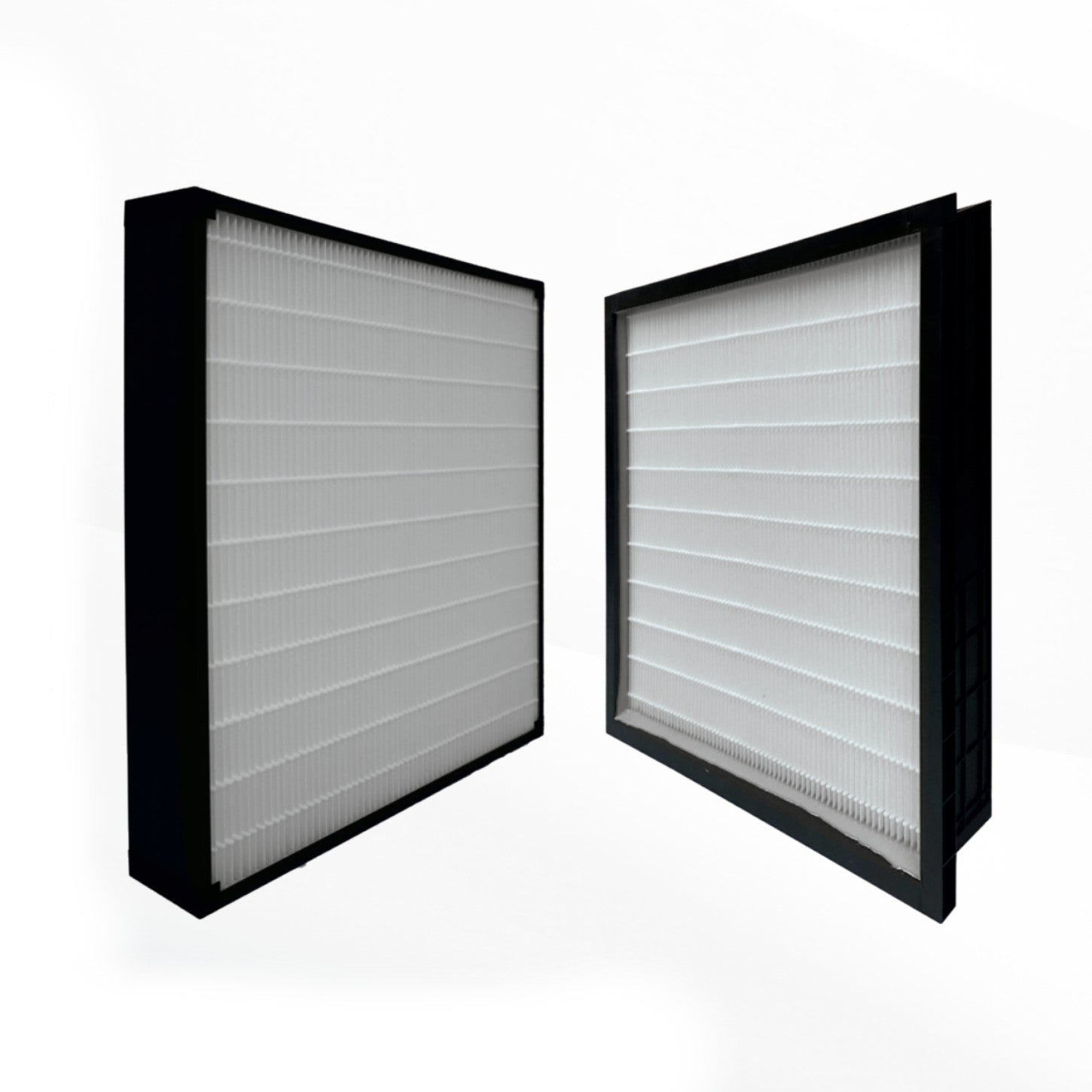

• Configuration: Box Frame or Single Header
• Pack Quantity: 3 Filters

Applications

• Commercial HVAC Systems
• Industrial Air Handling Systems
• Air Handling Units (AHUs)
• Rooftop Units (RTUs)
• Healthcare Facilities
• Pharmaceutical Manufacturing
• Food Processing Plants
• Office Buildings
• Schools and Universities
• Data Centers
• Laboratories
• Clean Manufacturing Facilities

Features & Benefits

• Part of the DF Forward Series family of high-capacity mini pleat panel filters
• Mini-pleat design increases media area for improved performance
• Synthetic media provides high dust holding capacity and durability
• Plastic frame offers lightweight handling and corrosion resistance
• Low initial resistance helps reduce energy consumption
• Extended service life compared to traditional pleated filters
• Compact 4" depth reduces storage space requirements
• Available in box frame or single header configuration

Why Choose a Mini Pleat Filter?

Mini pleat filters provide significantly more media area than traditional pleated panel filters while maintaining a compact footprint. The increased media area allows for higher dust holding capacity, lower operating resistance, improved energy efficiency, and longer service life in demanding HVAC applications.

Also commonly referred to as a mini pleat panel filter, high-capacity panel filter, extended surface filter, HVAC final filter, or compact HVAC filter.

OEM Cross Reference

This 24x24x4 MERV 15 mini pleat filter is commonly used as a replacement for equivalent box frame and single header mini pleat panel filters from Mikropor, Glasfloss, Filtration Group, Koch Filter, AAF, Airguard, Camfil, Grainger, and other manufacturers meeting similar performance specifications.

• Mikropor MPFA-592/592/96-9PKNNG-S (Box Frame)
• Mikropor MPFA-592/592/96-9PKNNG-S-H20 (Single Header)
• Glasfloss Puracell II P-S 242449 (Box Frame)
• Glasfloss Puracell II PH-S 242449 PH-S (Single Header)
• Filtration Group GeoPleat Series
• Filtration Group Nexfil Series
• Koch MicroMAX FM Series
• AAF VariCel II Series
• AAF VariCel 2+ HC Series
• AAF PrecisionCell II Series
• Airguard Opti-Pac Series
• Camfil Variflow II Series
• Grainger 2GFG5
• Grainger 6B590

Quality & Compatibility

All DAMN Filters products are manufactured to meet or exceed industry performance standards and are designed as direct replacements for OEM specifications.

Call for availability. Sold in quantities of 3.

If you do not see the filter you are looking for, DAMN Filters offers a full line of mini pleat filters, rigid cell filters, HEPA filters, and other commercial and industrial replacement filters. Give us a call at (844) 605-3266 or contact us.

DAMN Filters offers a full line of Mini Pleat Panel Filters.

---
