DAMN Orbital VII Portable Dust Collector

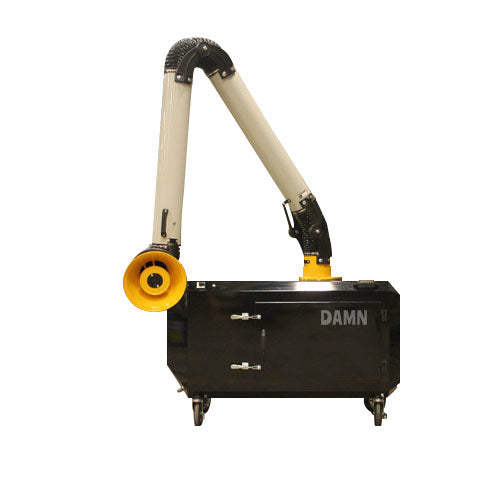

Orbital VII Dust Collector with Extraction Arm

• Dimensions: 25”W x 55”L x 25”T
• Max. CFM: 885 CFM
• Voltage/Amp: 120V Plug in (16.0 AMPS) (3 phase available)
• >Filter: 2 x 80/20 FR cartridge - Auto pulse clean (90-95 psi recommended)Fitting is made for 3/8” diameter air hose. Slide a raw hose end onto the hose barb and secure it with a adequately sized hose clamp.
• Blower/Motor: 1 1/2 HP DirectDrive Blower
• Weight: 280 lbs.
• Construction: 12 G welded steel
• Cord Length: 12' length
• Compressed Air Usage: 1-2 CFM
• Finish: Standard black or gray powder coat finish. Custom colors and decals are available on request.
• Operating Temperature: Max operating temp - 135 degrees F

Orbital VII Has (2) Dust Drawers

Dust Drawer #1 (Before the metal mesh prefilter. This collects the larger dust particles) – 0.6 Gallon Capacity

Dust Drawer #2 (Under the cartridge filters. This collects the smaller dust particles) – 1.7 Gallon Capacity

Total Capacity is 2.3 Gallons

• Plug and play portable dust extractor. 120V (16 AMPS)
• Smooth 360º fume extraction arm for flexible positioning.
• 885 CFM with the option of a 7' x 6" or 10' x 6" diameter extraction arm.
• Low-profile cabinet provides low center of gravity for safety and easy capture arm positioning.
• On-demand reverse pulse cleaning.
• Integrated minihelic gauge for monitoring airflow.
• Durable locking swivel casters make the unit a breeze to move and secure.
• Quick, tool-free filter change-out of the mobile dust extraction unit.
• Integrated dust tray for easy cleaning.
• Industrial heavy duty 12 G welded steel construction.
• DirectDrive Blower 1 1/2 HP
• Cartridges contains 80/20 fire retardant media.

DAMN ORBITAL VII Owner's Manual

All equipment purchases require 50% down payment.

What our customers say about the Orbital VII industrial portable dust collector:

"We were skeptical at first that we could get the level of performance we required at such a low price point. Thanks for exceeding our expectations!"
Steve W.
Production Manager, Texas

"Our Orbital VII's are working great in our welding production workflow. Being able to quickly move the units to workstations as needed has been a huge time saver."
Carlos S.
Floor Supervisor, California

"Damn right we're happy with them. We'll be getting three more for our grinding station at the end of this year. Thanks!"
Dave B.
Metalfab Shop Owner, Tennessee

DAMN Filters Orbital VII is the clear winner in price/performance evaluations. Compare for yourself vs other portable dust collector manufacturers:

AQC Maxiroll, AQC Maxicart, ProVent PSK, SideKick PSK, United Air Specialists, PCH portable dust collector, UAS V Series & W Series, AER Control Systems, PlymoVent Mobile One, Airflow Systems PCH-1 & PCH-2, Camfil Zephyr III Portable, Monoxivent Portable, Micro Air TM500 & TM1000, Micro Air MC1500, Sideros ECO 2C, Maxflo-PC, Model XA Extraction, Max Mobilair and RoboVent VentBoss.
