RCP5 Details

Original OEM Make: Turbo
OEM Part Number: RCP5
Description:: Solenoid Valve Enclosure
Size: 5-Solenoid Enclosure
Cross Reference: 3-5V5010-331

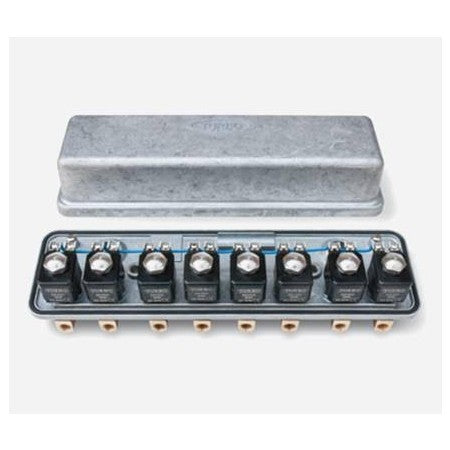

Turbo RCP Pilot Boxes for remote style valves. All RCP Boxes are made from die cast aluminum, dust and water tight, rated NEMA 4/IP66 with common terminals pre-wired.

Details:

• The die-cast aluminum pilot enclosures have a IP66 protection rating, dust tight / water tight, and allow for the remote control of pulse valves

• Available with up to 12 remote pilots in each enclosure

• The valves are pneumatically connected with the enclosure by means of a 1/8”NPT airline. 6mm x 8mm airline (metric)

• Provided with pre-wired common terminals



• Heating elements are available for cold and humid climates to ensure stable temperature inside the enclosure

• RCP = for short distances (approximately 3-meters)

• RLD = for long distances (approximately 10-meters)


Standard Features:

• Operating Pressure: min 0.5 bar – max 7.5 bar

• Temperature Range: -20C +80C / -40C +80C with heating element

• Base and Cover: Die cast aluminum

• Core tube: Stainless Steel

• Plunger: Stainless Steel

• Screws: Stainless Steel

• Coil Insulation: Class H

• Protection: IP66
