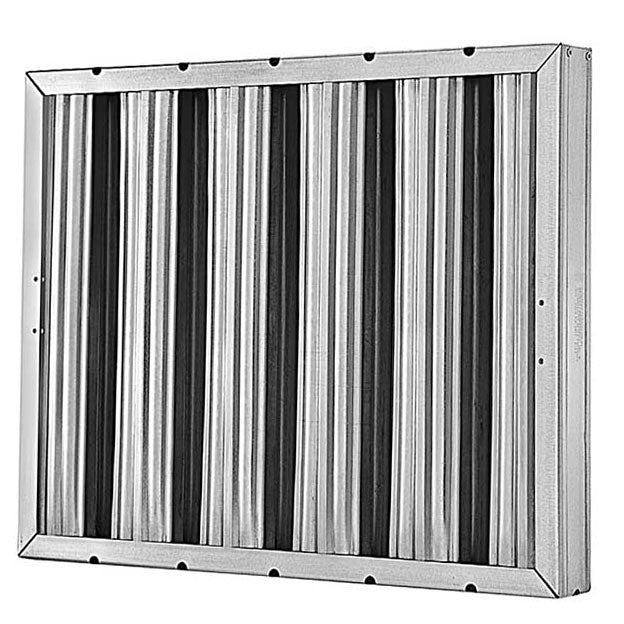

Grease Filter Details
***WHEN ORDERING, VERTICAL DIMENSION LISTED FIRST***
Call for availability, 2 pc minimum order.
OEM Make: DAMN Filters
Part Number: DF10202GFHG
Dimensions (inches): 10" x 20" x 2"
Length: 9 1/2"
Width: 19 1/2"
Depth: 1 7/8"
MATERIAL: The baffles constructed from 24 gauge Hot Dip Galvanized Steel, roll formed design that allows grease to drain easily and gives the filter extra strength. The baffle pad is framed in heavy Galvanized Steel frame, attached with rivets.
Notes: The heavy gauge baffle filter won't vibrate when installed due to the extra weight. The heavier baffle filter will not shift or bend when being handled. Baffles must run vertically for proper grease drainage. Drain holes in bottom of the filter to allow grease to drain and for drainage during cleaning. Maximum operating temperature 450 degrees F.
Available with Bail Handles, item# DF-HBGI-MMG (Galvanized) or item# DF-HBSI-MMS (Stainless Steel).
Available with Bottom Hook Brackets, item# DF-CABI-GF
If you don't see the Grease Baffle filter you are looking for or need help give us a call at (844) 605-3266 or contact us.
In addition to DAMN FILTERS, we make OEM Replacement filters for all the top dust collectors and industrial ventilation in the industry today. We guarantee fit and function at an unbeatable price. If you don't see the industrial filter you need, call us today at (844) 605-3266. We can cross reference any filter for your specific industiral application.
