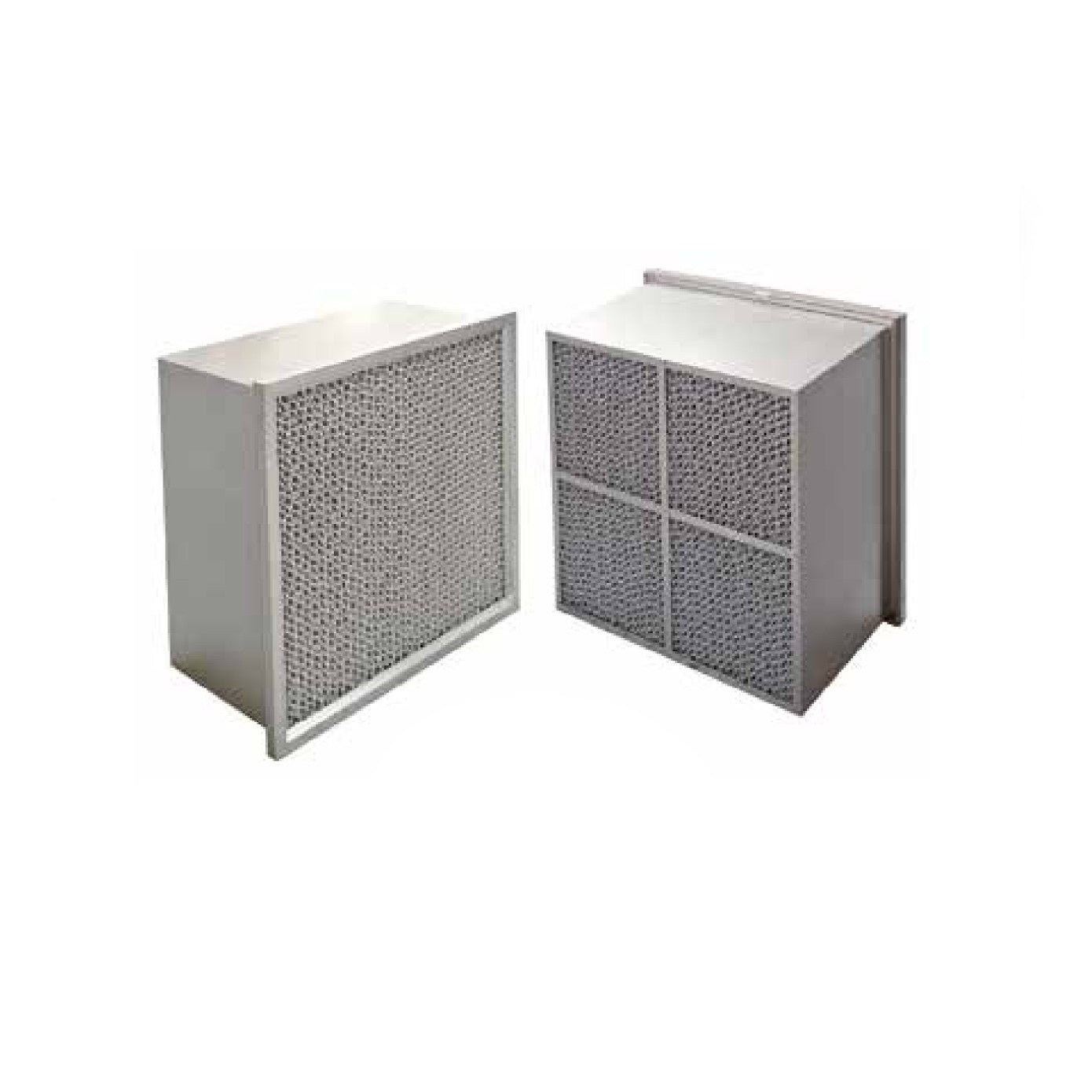

12x24x12 High-Temperature ASHRAE Cell Filter – MERV 14 (Box Frame)

12x24x12 High-Temperature ASHRAE Cell Filter – MERV 14

This 12x24x12 high-temperature ASHRAE cell filter is a high-efficiency, extended surface deep pleat filter designed for industrial air handling where standard HVAC filters will not hold up. Built with glass fiber media and aluminum separators, it is designed for high heat applications such as ovens, curing lines, and industrial process air systems where long service life and reliable performance are critical. Common replacement for high-temperature rigid cell filters used in industrial HVAC systems.

This filter is rated under ASHRAE 52.2 as MERV 14 and is commonly used as a final filter or as a prefilter to HEPA in high-temperature and industrial HVAC systems. This is not a HEPA filter.

Specifications

• OEM Make: DAMN Filters
• Part Number: DF122412AHTB
• Filter Category: High-temperature ASHRAE rigid cell / high-efficiency final filter
• Filter Type: Extended surface deep pleat (separator-style)
• ASHRAE 52.2 Rating: MERV 14
• Configuration: Box Frame
• Nominal Size: 12 x 24 x 12 in
• Actual Dimensions (in): 12.00 W x 24.00 H x 11.50 D
• Filter Media: Glass fiber
• Media Separators: Corrugated aluminum with hemmed safety edge
• Frame: Galvanized steel construction
• Gasket: High-temperature gasket
• Typical Operating Airflow: 1,250 CFM @ 0.68 in. w.g.
• Initial Resistance: 0.68 in. w.g.
• Final Resistance: 1.50 in. w.g.
• Operating Temperature: up to 500°F
• UL 900: Classified

Applications

• High-temperature air handling systems
• Industrial exhaust and process air filtration
• Automotive, paint, and thermal processing environments
• High heat locations where standard filters fail prematurely

Verify temperature rating, frame style, and exact dimensions prior to substitution.
