20x20 NanoWave Synthetic Bag Filter – MERV 13

20x20 NanoWave Synthetic Bag Filter – MERV 13

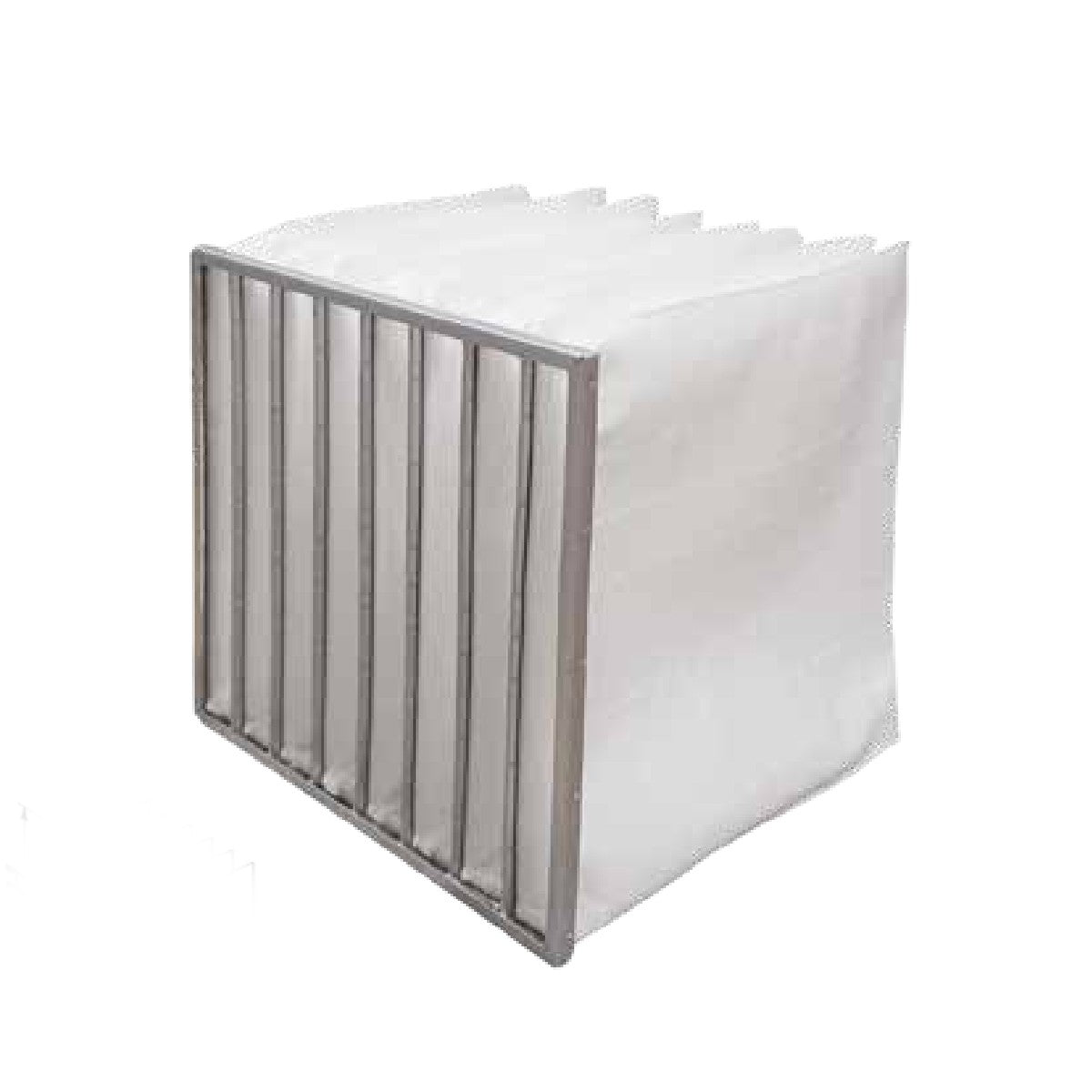

High-efficiency NanoWave synthetic pocket bag filter designed for commercial and industrial HVAC systems. Available in MERV 13 efficiency with 15-inch and 22-inch pocket depths and 6-pocket configurations.

Sold by the case only. Case quantity is shown in each available filter configuration. Pricing shown is per case.

NanoWave media provides high dust-holding capacity with low initial pressure drop. The self-supporting conical sewn pocket design helps maintain pocket shape and airflow during operation.

Filter Specifications

• Part Numbers: DF202015N6PM13 and DF202022N6PM13
• Nominal Face Size: 20" x 20"
• Media: Synthetic NanoWave
• Efficiency: MERV 13
• Available Pocket Depths: 15" and 22"
• Pocket Configuration: 6 Pocket
• Final Pressure Drop: 1.2" w.g.
• Maximum Operating Temperature: 176°F
• Humidity: Up to 100% RH
• Gasket: Optional

Applications

• Commercial HVAC systems
• Industrial ventilation systems
• Air handling units
• High-efficiency pocket bag filter applications
• Replacement option for Camfil Hi-Flo Series bag filters

Advantages

• High dust-holding capacity
• Low initial pressure drop
• Self-supporting conical sewn pocket design
• Synthetic NanoWave filter media

Available Configurations

• 15" Deep – 6 Pocket – MERV 13 – Case of 3
• 22" Deep – 6 Pocket – MERV 13 – Case of 3

Cross References

• Mikropor MPS-7-6-380-492/492-G-N-H22-NW-EDHC
• Mikropor MPS-7-6-558-492/492-G-N-H22-NW-EDHC
• Camfil Hi-Flo Series – Replacement Option

Select the required filter configuration from the available options above. All configurations are priced and sold by the case.

DAMN Filters offers a full line of pocket bag filters for commercial and industrial HVAC applications.

If you need help selecting the correct pocket bag filter for your application, call (844) 605-3266 or contact us.
