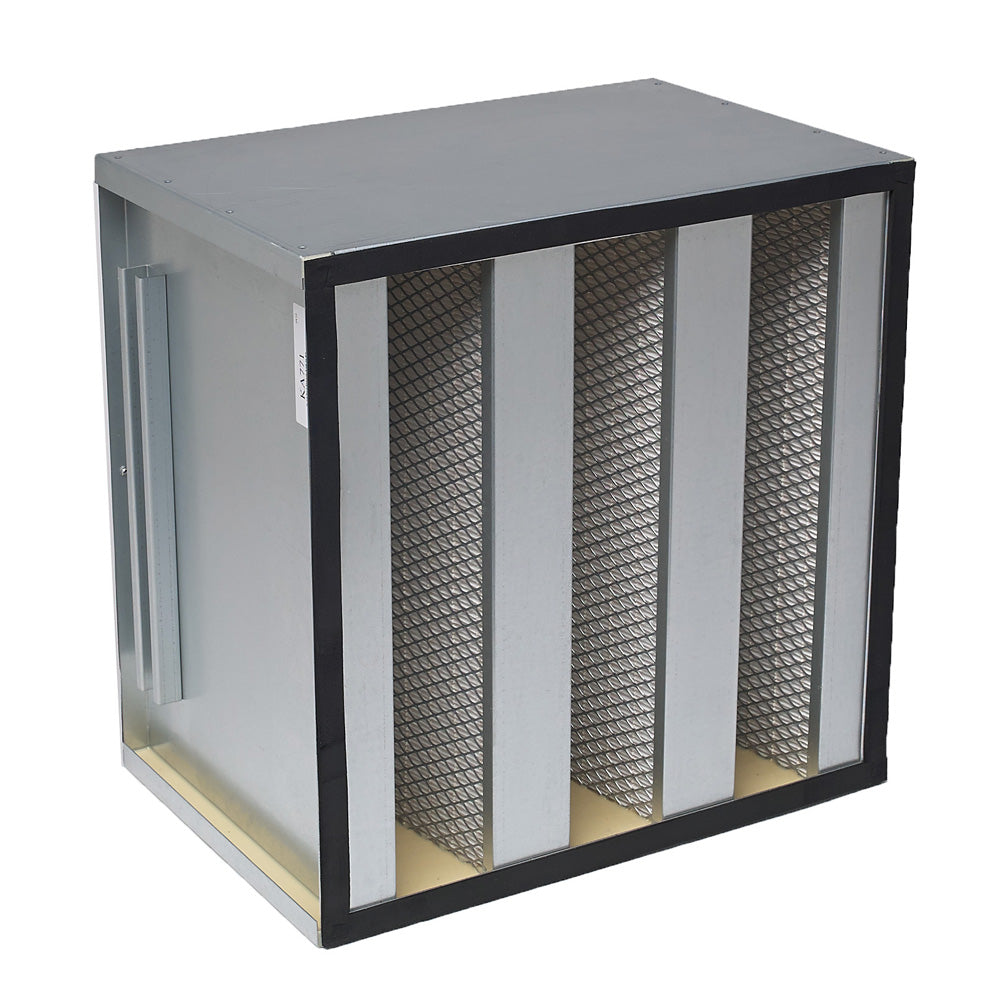

24 x 24 x 12 Panel Air Intake Filter Details

The 24x24x12 Panel Air Intake Filter (DF-MVP-3020-2424-502) is a direct replacement option for multiple OEM compressor and blower intake filters, including popular Dollinger, Cameron, Keltec, and Sidco part numbers. This high-efficiency microglass element is engineered for industrial air intake systems requiring low restriction and fine particulate capture.

  • DAMN Part Number: DF30202424502
  • Filter Type: High-Efficiency Industrial Air Intake Panel Filter
  • Nominal Size: 24.00" x 24.00" x 12.00"
  • Actual Size: 23.31" x 23.31" x 11.50"
  • Media: Microglass
  • Media Area: 235 sq. ft.
  • Frame Material: Galvanized Steel
  • Gasket: Neoprene (Upstream & Downstream)
  • Flow Direction: Outside → In
  • Rated Efficiency: 99.97% @ 2 micron
  • Rated Airflow: 3000 CFM
  • Initial Pressure Drop: 1.0" w.c.
  • Construction: Rigid 12" deep panel design with side mounting brackets
  • Weight: 38.0 lb
  • Sold: 1 per box (price per filter)

This replacement element is engineered to meet or exceed OEM performance for industrial compressor and blower intake applications, delivering reliable efficiency, airflow, and service life.

OEM Cross References for 24x24x12 Panel Air Intake Filter

Common replacement for the following OEM brands and part numbers:

Keltec

  • KA502

Cameron

  • AAP0540009-873
  • AAP0540009-0873

Cameron Compression

  • AAP0540009-0873
  • P5400009-290

Dollinger

  • 3507574
  • MVP-3020-2424-502
  • MVP-6020-2424-518
  • MVP-602-2424-518

Sidco

  • 432-0017
  • 432-3747

Frequently Asked Questions

  • Is this compatible with my OEM housing? If your existing element matches the dimensions and any of the cross reference numbers above, this filter is designed as a direct replacement.
  • What efficiency is this? 99.97% @ 2 microns, matching the OEM KA502 specification.
  • How is it sold? Sold individually. Pricing shown is per filter.
