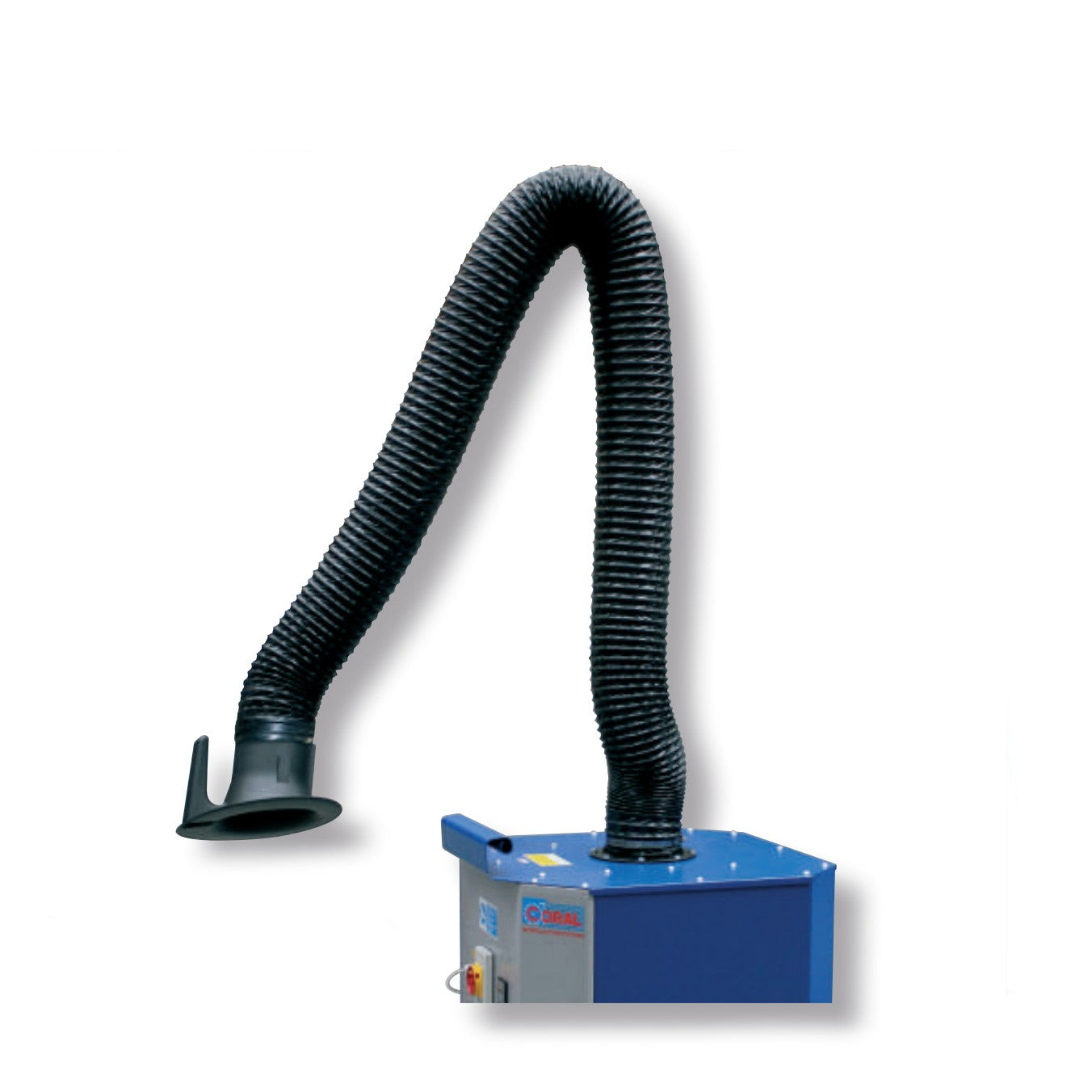

Coral Dynaflex Extraction Arm – Welding Smoke Fume Extraction

The Coral Dynaflex extraction arm is a genuine Coral OEM source-capture arm designed for welding smoke and light-duty fume extraction. Built for industrial workstations, this arm captures fumes directly at the source while providing smooth movement, long service life, and easy positioning.

The Dynaflex is a simple, cost-effective extraction arm for welding smoke and light-duty fume capture. It gives you reliable Coral OEM quality without stepping into oversized or overbuilt systems.

Need help choosing the right arm length or mount style? Call (844) 605-3266 and we’ll help you line it out.

Quick Specs

  • Diameter: 6.3" (160 mm)
  • Applications: Welding smoke and light-duty fume extraction
  • Mounting Options: Wall mounted or portable mounted
  • Lengths: 7 ft, 10 ft, and 14 ft
  • Hood: Polypropylene WINGHOOD with adjustable damper
  • Temperature Range: -20°C to +110°C

Key Features

  • Designed for welding smoke and fume extraction
  • 6.3" (160 mm) diameter arm for effective airflow and capture
  • Hose constructed of fiberglass fabric coated with PVC
  • Reinforced with harmonic steel close-knit spiral embedded between two hot-welded bands of fabric
  • Non-inflammable hose construction rated Class M1 of the C.S.T.B.
  • Working temperature range from -20°C to +110°C
  • Excellent for welding fumes
  • Heavy-duty metal support structure for durability and stability
  • Double rotary bearings for smooth 360° rotation at hood and base
  • Ergonomic polypropylene WINGHOOD with adjustable airflow damper
  • Easy positioning and maneuverability across the full arm length
  • Simple installation and low maintenance design

Why Choose the Coral Dynaflex Arm?

  • Genuine Coral OEM extraction arm
  • Cost-effective option for welding fume capture
  • Easy to position and adjust during use
  • Available in wall-mounted and portable configurations
  • Built for simple installation and low maintenance

Available Configurations

Wall Mounted Dynaflex Arms

  • Part #2090000262 – 7 ft reach (2.1 m) – 6.3" diameter
  • Part #2090000263 – 10 ft reach (3 m) – 6.3" diameter
  • Part #2090000264 – 14 ft reach (4.2 m) – 6.3" diameter

Portable Mounted Dynaflex Arms

  • Part #2090000259 – 7 ft reach (2.1 m) – 6.3" diameter
  • Part #2090000260 – 10 ft reach (3 m) – 6.3" diameter
  • Part #2090000261 – 14 ft reach (4.2 m) – 6.3" diameter

Applications

  • Welding smoke extraction
  • Welding fume source capture
  • Light-duty welding stations
  • Fabrication and grinding work areas
  • Maintenance and repair operations

Common Uses

  • Manual welding stations
  • Light fabrication benches
  • Repair shops
  • Maintenance departments
  • Localized smoke and fume capture at the source

How It Works

The Coral Dynaflex arm uses a reinforced metal structure to support the arm while maintaining full flexibility along its length. Double rotary bearings allow smooth 360° rotation at both the hood and mounting point, making it easy to position directly over the source. The fiberglass fabric and PVC-coated hose construction is reinforced for durability and long life, while the WINGHOOD design helps capture welding fumes at the source before they spread through the workspace.

Compatible With

  • Coral wall mounting brackets
  • Portable extraction units
  • Centralized ducted fume extraction systems
  • Coral CLEANGO systems
  • Coral JETCLEAN DF systems

Frequently Asked Questions

  • What is this arm used for? Welding smoke and light-duty fume extraction at the source.
  • What size is the arm? 6.3" (160 mm) diameter.
  • Can this be used with a dust collector or central exhaust system? Yes, it can be connected to central exhaust or compatible dust collection systems.
  • Is this available in different lengths? Yes, Dynaflex arms are available in 7 ft, 10 ft, and 14 ft configurations.
  • Is there a wall-mounted version and a portable version? Yes, both wall-mounted and portable mounted options are available.

Installation & Accessories

A Coral wall mounting bracket is required for fixed installations.

Pair this arm with a dust collection system or central exhaust fan for complete fume control.

DAMN Filters offers a full line of fume extraction arms and source capture solutions.

If you do not see the Dynaflex configuration you need, call us at (844) 605-3266 or contact us.
