DAMN Delta XL Heavy Portable Dust Collector

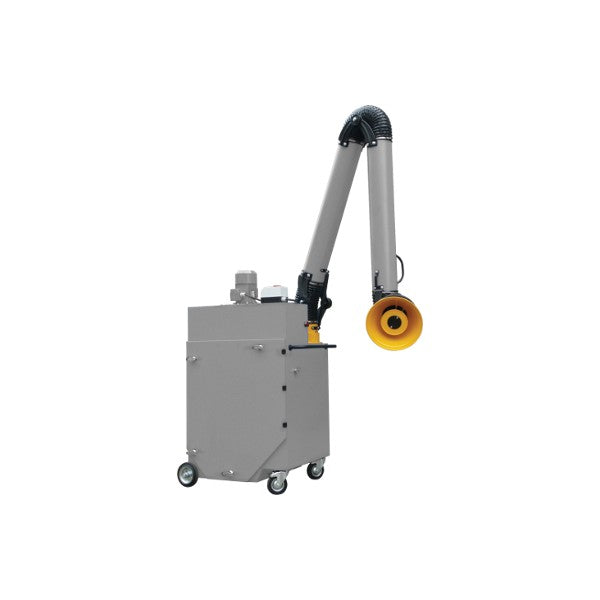

Delta XL Dust Collector with Extraction Arm

• Motor: 3 HP 208-230/460V 3 Phase Motor (Explosion proof upgrade available)
• Voltage: 208-230/460V, 3 HP Three Phase 480V motor: 4.8 full load amps and would require a 15 amp circuit breaker
• Fan: Direct Drive Fan
• Air Tank: 20L Compressed Air Tank (requires air line)
  Fitting is made for 3/8” diameter air hose. Slide a raw hose end onto the hose barb and secure it with a adequately sized hose clamp.
• Max CFM: 1,570 CFM
• Decibel Rating: 85db
• Stage 1 Filter: Metal Mesh Filter
• Stage 2 Filter: (2) Cartridge filter (Merv 11, 130 sq ft of media)
• Stage 3 Filter: Activated carbon outlet filter
• Cleaning System: Automatic Timer Controlled Compressed Air Cartridge Filter Cleaning system
• Inlet: 8" Inlet or dual 6" Inlet
• Casters: Heavy Duty Wheels and Casters
• Compressed Air Usage: 2-3 CFM
• Switch: Heavy Duty Electrical On/Off Switch
• Dimensions: 48” Long x 37” Wide x 51” High
• Operating Temperature: Max operating temp - 135 degrees F
• 3 phase unit, requires power source and air line.
• Smooth 360º fume extraction arm for flexible positioning.
• Arm Option 1: (2) 6″ Diameter x 10′ or 14′ Long
• Arm Option 2: (1) 8″ Diameter x 10′ or 14′ Long
• Low-profile cabinet provides low center of gravity for safety and easy capture arm positioning.
• Built in spark trap
• Durable locking swivel casters make the unit a breeze to move and secure.
• Quick, tool-free filter change-out of the mobile dust extraction unit.
• Built in thermal protection for the motor

Delta XL Applications

• Dry dust
• Soldering dust
• Welding fumes
• Grinding dust
• Powders
• Not sure, contact us and we will help you find the right collector

DAMN Filters Delta XL is the clear winner in price/performance evaluations. Compare for yourself vs other portable dust collector manufacturers:

WEHA Mobile Suction Arm Dry Dust Collector, RoboVent VentBoss, Parker Dust Hog, Airflow Systems PCH-1 and PCH-2, Micro Air MC Series, Diversitech Fred Series

**No Plug Is Included On The End Of The Power Cord. Customer Must Supply Their Own Plug Due To The Many Different NEMA Plug Sizes Available**

All equipment purchases require 50% down payment.

DAMN Filters offers a full line of portable dust collectors.

If you don't see the portable collector you are looking for or need help give us a call at (844) 605-3266 or contact us.
