FRED MINI-VAC II PORTABLE FUME EXTRACTOR

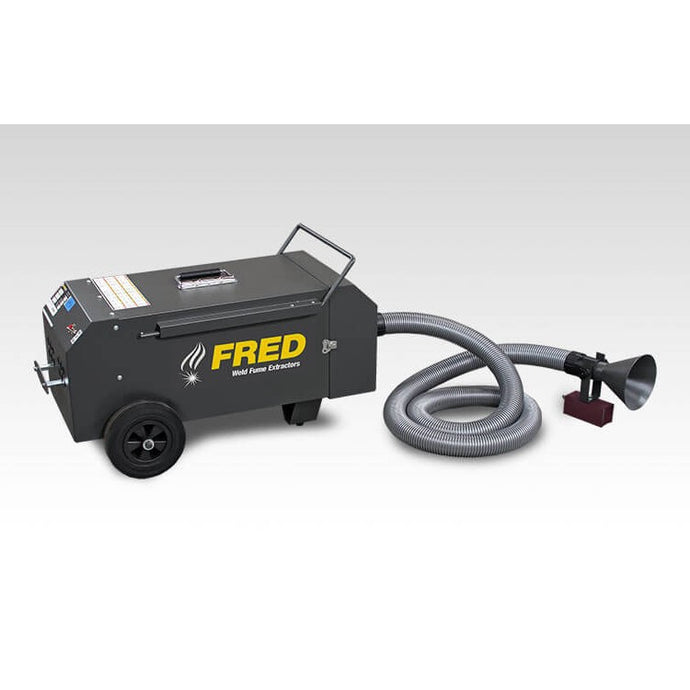

FRED Mini-Vac II Portable Fume Extractor

The FRED Mini-Vac II is a compact, portable fume extractor designed for light-to-medium duty welding and other source-capture applications. Its dual-motor design allows the operator to use one or both motors depending on the airflow needed.

Standard Features

• Dual 1 HP motor design
• Up to 210 CFM airflow
• 120V / 1 Phase / 60 Hz
• High and low operating modes
• Lightweight, portable design
• Filter service indicator
• Connects to MIG fume extraction guns
• Magnetic nozzle base for secure nozzle placement
• 10' suction hose
• 6' power cord

Available Filter Configurations

• Nanofiber: NanoTech MERV 15 filter cartridge
• Polyester: Washable PolyTech MERV 11 filter cartridge
• HEPA: MERV 17 filter cartridge, 99.97% efficiency at 0.3 micron

Available Options & Accessories

• 16" Nanotech MERV 15 replacement filter cartridge
• 16" washable Polytech MERV 11 replacement filter cartridge
• 16" HEPA filter cartridge, 99.97% efficiency at 0.3 micron
• Metal mesh prefilter
• Activated carbon panel filter
• 2" to 6" suction nozzle
• Magnetic base with bracket
• 2" Mini-Vac hose cuff
• 2" flexible hose
• 10' length of 2" flexible hose
• 2" union for joining two Mini-Vac suction hoses

Recommended Applications

• Welding
• Grinding
• Deburring
• Soldering

The FRED Mini-Vac II is designed for portable capture-at-source applications where a compact fume extractor is needed. It is not recommended for sanding or painting applications.

Payment Terms: Equipment purchases require a 50% down payment.

DAMN Filters offers a full line of portable fume extractors and dust collection equipment.

Need help selecting the correct fume extractor or filter configuration for your application? Call us at (844) 605-3266 or contact us.
