Monsoon 3 X 4 Wet Downdraft Table

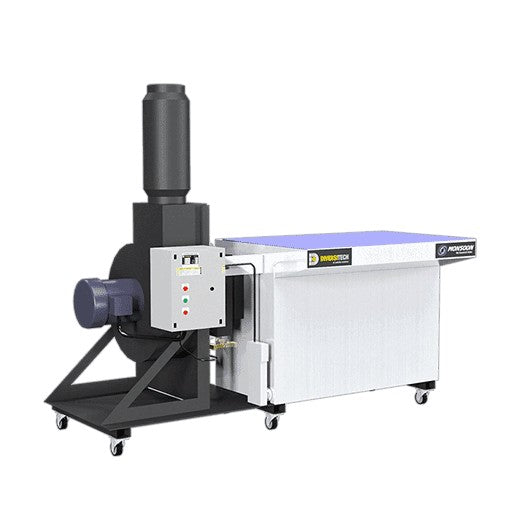

Diversitech Monsoon 3' x 4' Wet Downdraft Table

The Diversitech Monsoon 3' x 4' Wet Downdraft Table is a self-contained industrial wet dust collector designed for capture-at-source of combustible dust generated during grinding, deburring, sanding, finishing, powder mixing and similar industrial processes.

Contaminated air is pulled downward through the ventilated work surface and into the wet collection system, where dust particles are captured in water before settling for removal. The open-top standard configuration provides a large work surface, while additional configurations are available for more specialized applications.

Standard Features

• 49" x 36" work surface
• 5 HP TEFC motor producing 3,000 CFM
• 250 FPM average face velocity
• Stainless steel anti-corrosion construction
• Automatic water level control system
• Standard exhaust silencer
• Rubber cushion grid mat
• Industrial swivel casters for portability
• Integrated overhang for seated operation
• Self-contained compact design

Available Configurations

• Open Top: Standard Monsoon MDD-3X4 wet downdraft table with 5 HP motor
• GDS: Grinding, Deburring & Sanding configuration

Electrical Configurations

• 230V / 3 Phase / 60 Hz
• 460V / 3 Phase / 60 Hz
• 575V / 3 Phase / 60 Hz

Available Options & Accessories

• Automatic Water Wash-down (AWW) configuration
• Clean Air Workstation (CAW) configuration
• Side & back walls, powder-coated
• Hinged right side wall with fixed back and left side walls, powder-coated
• Side & back walls with 4" steel frame and clear Lexan insert
• Hinged right wall with fixed back and left walls, 4" steel frame with clear Lexan insert
• Clean Air Workstation side and back panels, 48" high, with top cover & light kit
• Automatic wash-down spray kit
• Dual HEPA afterfilters with frame, Photohelic gauge & high-temperature cutoff
• Mist eliminator afterfilter
• Blue cushion grid matting, 48" x 36"

Recommended Applications

• Grinding
• Deburring
• Sanding
• Finishing
• Powder mixing
• Plastic dust
• 3D printing dust
• Aluminum dust
• Magnesium dust
• Titanium dust
• Other combustible dust applications where wet collection is appropriate

Application Note: Combustible dust hazards vary by material and process. Dust characteristics, process conditions, facility requirements and applicable combustible dust standards should be reviewed before selecting equipment. The Monsoon 3' x 4' is not recommended for welding, soldering or painting applications.

Why Add a Sludge Vacuum?

The optional Diversitech WV-55 Sludge-Vac provides a convenient way to remove accumulated sludge, dust, chips and swarf from the wet collector during routine maintenance.

Combustible Dust Safety

Download our DAMN Filters Combustible Dust Guide for information on combustible dust hazards, wet vs. dry collection, OSHA guidance, NFPA 660 and equipment selection considerations.

Payment Terms: Equipment purchases require a 50% down payment.

DAMN Filters offers a full line of wet downdraft tables.

Need help selecting the correct downdraft table and options for your application? Call us at (844) 605-3266 or contact us.

---
