Monsoon 3 X 6 Wet Downdraft Table

MONSOON 3' X 6' WET DOWNDRAFT TABLE

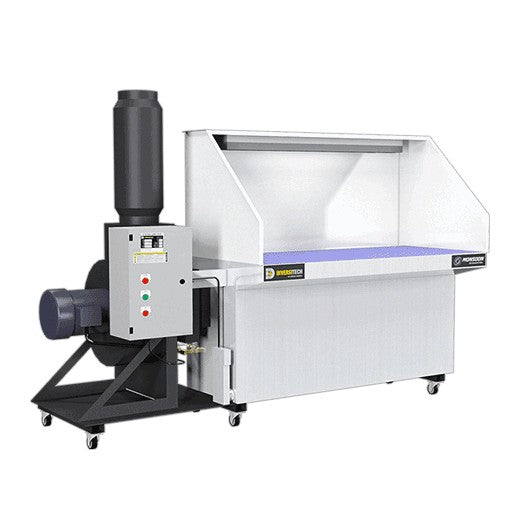

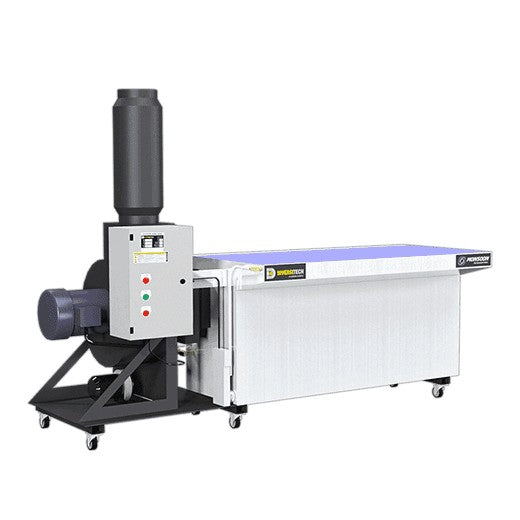

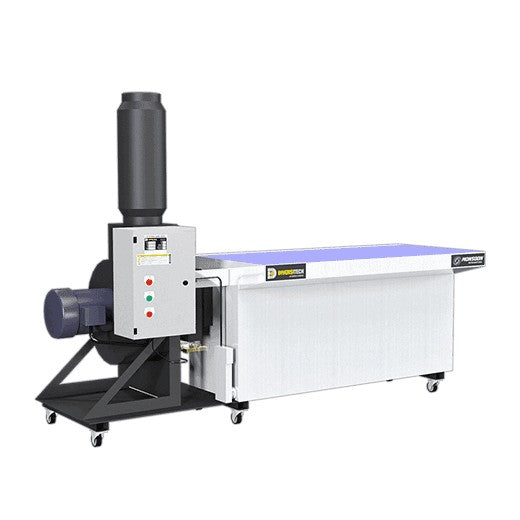

The Diversitech Monsoon 3' x 6' Wet Downdraft Table is a self-contained industrial wet dust collector designed for capture-at-source of combustible dust generated during grinding, deburring, sanding, finishing, powder mixing, buffing, and similar industrial processes.

Contaminated air is pulled downward through the ventilated work surface and into the wet filtration system, where dust particles are captured in the water before settling for removal. This helps control combustible dust directly at the source while providing a large, open work surface for the operator.

Monsoon 3' x 6' Standard Features

• 73" x 36" ventilated work surface
• High capture face velocity – 230 FPM
• 10 HP TEFC motor producing up to 5,000 CFM of airflow
• Stainless steel anti-corrosion construction
• Automatic water level control system
• 60 gallon tank capacity
• Mist filter
• Industrial swivel casters for portability
• Approximate noise level: 78 dB at 5 ft.

Available Electrical Configurations

The Monsoon 3' x 6' is available with a 10 HP, 3-phase, 60 Hz motor in the following voltages:

• 230 Volt, 3 Phase – 28 amps
• 460 Volt, 3 Phase – 14 amps
• 575 Volt, 3 Phase – 11 amps

Please specify facility voltage when ordering.

Recommended Applications

• Grinding
• Deburring
• Sanding
• Finishing
• Powder mixing
• Buffing
• Aluminum dust
• Magnesium dust
• Titanium dust
• Other combustible dust applications where wet collection is appropriate

Application Note: Combustible dust hazards vary by material and process. Dust characteristics, process conditions, facility requirements, and applicable combustible dust standards should be reviewed before selecting equipment. The Monsoon 3' x 6' is not recommended by the manufacturer for welding, soldering, or painting applications.

Monsoon Optional Upgrades

• Grinding, Deburring & Sanding configuration
• Side and Back Walls
• Dust-Tight / Vapor-Tight Light Kit
• Blue Cushion Grid Matting
• Auto Wash-down System
• WV-55 Sludge-Vac for Wet Dust Collectors
• HEPA Afterfilter Kit – 99.99% @ 0.3 micron
• Custom configurations available on request

Why Add a Sludge Vacuum?

The optional Diversitech WV Sludge-Vac provides a convenient way to remove accumulated sludge, dust, chips, and swarf from the wet collector during routine maintenance.

Product Literature & Documentation

Monsoon Product Guide.

Monsoon Operation and Maintenance Manual.

Monsoon Maintenance Manual.

Combustible Dust Safety

Download our DAMN Filters Combustible Dust Guide for information on combustible dust hazards, wet vs. dry collection, OSHA guidance, NFPA 660, and equipment selection considerations.
