MONSOON MINI WET DOWNDRAFT TABLE

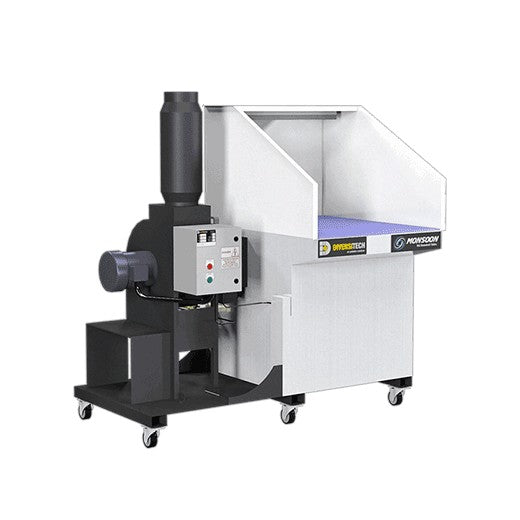

Diversitech Monsoon Mini Wet Downdraft Table

The Diversitech Monsoon Mini Wet Downdraft Table is a compact industrial wet dust collector designed for capture-at-source of combustible dust generated during grinding, deburring, sanding, finishing and similar industrial processes.

Contaminated air is pulled downward through the ventilated work surface and into the wet collection system, where dust particles are captured in water before settling for removal. The compact design provides wet dust collection directly at the work surface while minimizing floor space.

Standard Features

• 38" x 36" work surface
• 3 HP TEFC motor producing 1,200 CFM
• 300 FPM average face velocity
• Stainless steel construction
• Heavy-duty steel bar grating with protective mat
• Mist eliminator afterfilter, 99% at 3 microns
• NEMA 12 control panel with overload protection
• Industrial swivel casters for portability
• Approximate sound level: 72 dB at 5 ft.

Available Configurations

• Open Top: Standard Monsoon MDD-MINI wet downdraft table with 3 HP motor
• GDS: Grinding, Deburring & Sanding configuration

Electrical Configurations

• 230V / 3 Phase / 60 Hz
• 460V / 3 Phase / 60 Hz
• 575V / 3 Phase / 60 Hz

Available Options & Accessories

• Automatic Water Wash-down (AWW) configuration
• Clean Air Workstation (CAW) configuration
• Side & back walls, powder-coated
• Hinged right side wall with fixed back and left side walls, powder-coated
• Side & back walls with 4" steel frame and clear Lexan insert
• Hinged right wall with fixed back and left walls, 4" steel frame with clear Lexan insert
• Clean Air Workstation side and back panels, 48" high, with top cover & light kit
• Automatic water level control system
• Automatic wash-down spray kit
• HEPA afterfilter with frame, Photohelic gauge & high-temperature cutoff
• Mist eliminator afterfilter
• Blue cushion grid matting, 36" x 38"

Recommended Applications

• Grinding
• Deburring
• Sanding
• Finishing
• Aluminum dust
• Magnesium dust
• Titanium dust
• Other combustible dust applications where wet collection is appropriate

Application Note: Combustible dust hazards vary by material and process. Dust characteristics, process conditions, facility requirements and applicable combustible dust standards should be reviewed before selecting equipment.

Why Add a Sludge Vacuum?

The optional Diversitech WV-55 Sludge-Vac provides a convenient way to remove accumulated sludge, dust, chips and swarf from the wet collector during routine maintenance.

Combustible Dust Safety

Download our DAMN Filters Combustible Dust Guide for information on combustible dust hazards, wet vs. dry collection, OSHA guidance, NFPA 660 and equipment selection considerations.

Payment Terms: Equipment purchases require a 50% down payment.

DAMN Filters offers a full line of wet downdraft tables.

Need help selecting the correct downdraft table and options for your application? Call us at (844) 605-3266 or contact us.

---
