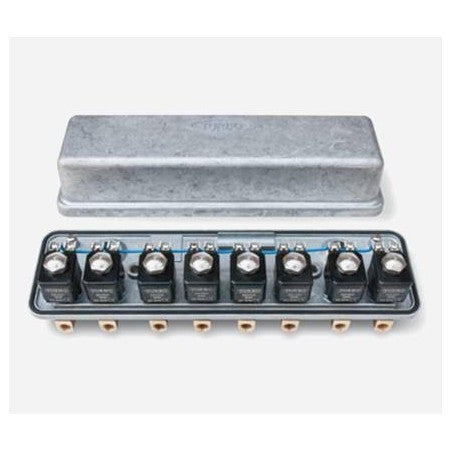

Turbo RCP7 Solenoid Valve Enclosure (replacement)

RCP7 Details

• Original OEM Make: Turbo
• OEM Part Number: RCP7
• Description:: Solenoid Valve Enclosure
• Size: 7-Solenoid Enclosure
• The die-cast aluminum pilot enclosures have a IP66 protection rating, dust tight / water tight, and allow for the remote control of pulse valves
• Available with up to 12 remote pilots in each enclosure
• The valves are pneumatically connected with the enclosure by means of a 1/8”NPT airline. 6mm x 8mm airline (metric)
• Provided with pre-wired common terminals
• Heating elements are available for cold and humid climates to ensure stable temperature inside the enclosure
• RCP = for short distances (approximately 3-meters)
• RLD = for long distances (approximately 10-meters)
• Operating Pressure: min 0.5 bar – max 7.5 bar
• Temperature Range: -20C +80C / -40C +80C with heating element
• Base and Cover: Die cast aluminum
• Core tube: Stainless Steel
• Plunger: Stainless Steel
• Screws: Stainless Steel
• Coil Insulation: Class H
• Protection: IP66

Cross Reference: 3-8V7010-331

Turbo RCP Pilot Boxes for remote style valves. All RCP Boxes are made from die cast aluminum, dust and water tight, rated NEMA 4/IP66 with common terminals pre-wired.
