TYPHOON WX SERIES WET DUST COLLECTORS

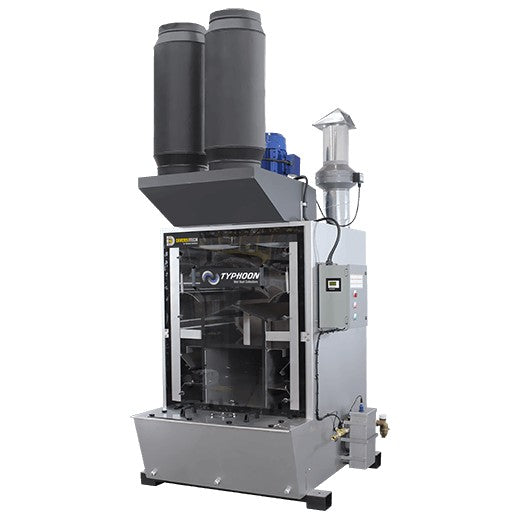

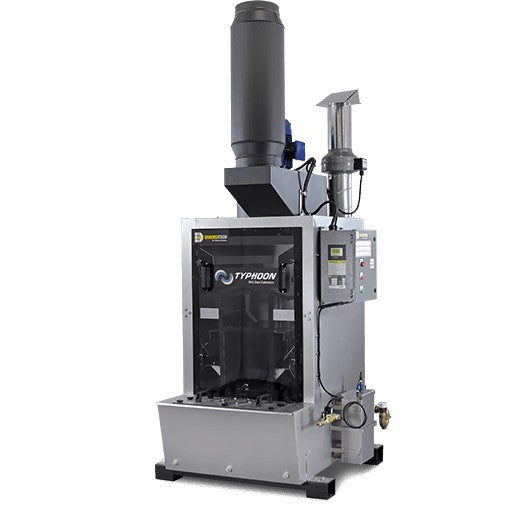

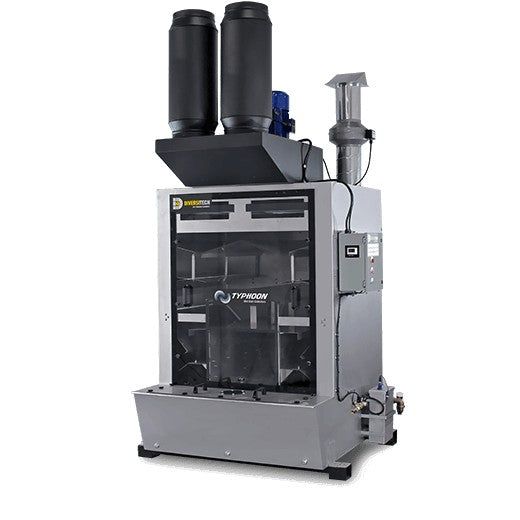

Typhoon WX Series Wet Dust Collectors

The Diversitech Typhoon WX Series is a line of industrial wet dust collectors designed for ducted capture of combustible dust generated by grinding, deburring, sanding, finishing and other industrial processes.

Available in airflow capacities from 1,200 to 6,500 CFM, Typhoon wet collectors use water as the filtration medium to capture combustible dust and particulate from the incoming air stream. Multiple collector sizes allow the system to be matched to the airflow requirements of the application.

Standard Features

• Stainless steel anti-corrosion construction
• Automatic water level control system
• Mist eliminator filtration
• Continuous-duty industrial design
• Designed for ducted combustible dust collection applications
• Multiple collector sizes for a wide range of airflow requirements

Available Models

• WX-1200: 3 HP, 1,200 CFM
• WX-3000: 5 HP, up to 3,500 CFM
• WX-5000: 10 HP, up to 5,000 CFM
• WX-6500: 15 HP, up to 6,500 CFM

Electrical Configurations

• 230V / 3 Phase / 60 Hz
• 460V / 3 Phase / 60 Hz
• 575V / 3 Phase / 60 Hz

Available Options & Accessories

• HEPA afterfilter systems, 99.97% efficiency at 0.3 micron
• Self-cleaning strainer systems for dust & sludge removal
• Baffle kits for applicable models
• Ducted downdraft tables available in multiple sizes
• Custom configurations available on request

Recommended Applications

• Grinding
• Deburring
• Sanding
• Finishing
• Wide-belt sanding
• Food processing
• Aluminum dust
• Magnesium dust
• Titanium dust
• Other combustible dust applications where wet collection is appropriate

Application Note: For proper collector sizing and performance, it is best practice to confirm the required CFM, duct size, ductwork configuration, static pressure and application details before selecting a Typhoon WX collector. Contact DAMN Filters for assistance reviewing your system requirements and selecting the appropriate collector size.

Why Add a Sludge Vacuum?

The optional Diversitech WV-55 Sludge-Vac provides a convenient way to remove accumulated sludge, dust, chips and swarf from the wet collector during routine maintenance.

Combustible Dust Safety

Download our DAMN Filters Combustible Dust Guide for information on combustible dust hazards, wet vs. dry collection, OSHA guidance, NFPA 660 and equipment selection considerations.

Payment Terms: Equipment purchases require a 50% down payment.

Need help selecting the correct wet dust collector and options for your application? Call us at (844) 605-3266 or contact us.
