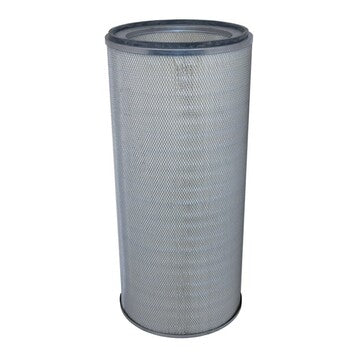

1569656 - AAF - OEM Replacement Filter

AAF

1569656 - AAF - OEM Replacement Filter (Standard: 80/20 Cellulose/Polyester Blend)

Regular price
$263.93
Sale price
$263.93
Regular price
Sold out
Unit price
per
1569656 - AAF - OEM Replacement Filter
Super Zoom
  • Load image into Gallery viewer, 1569656 - AAF - OEM Replacement Filter

1569656 Details

OEM Make: AAF
Part Number: 1569656
Dimensions: 11.50 x 16.00 x 34.50
Outside Diameter: 16.00"
Length: 34.50"
Inside Diameter: 11.50"
Top: Open
Bottom: Closed with a 0.54" bolt hole
Shape: Round
Approx. Square Footage of Filter Media: 356
Notes: The media for this AAF dust collector filter is 80/20 cellulose/polyester. (Select the 80/20 media option from the dropdown box above.) 80/20 is best to filter grinding dust, powder and dry chemical processing, and many other general manufacturing applications. Give us a call at (866) 393-0297 and we can help determine the proper filter media for your application.

Dust Collector Filter Industrial Specifications

1569656 AAF Replacement Dust Collector Filter

This canister filter-type AAF 1569656 cartridge filter element includes a end cap configuration.

Part Number Lookup: Internal cross reference for this AAF equivalent was updated February, 2016. The interchange ID is DF-3756807237-01 and conforms to a AAF replacement industrial cartridge filter for part number 1569656 and meets, or exceeds, the original AAF filter specification for compatible dust collection systems.

AAF

1569656 - AAF - OEM Replacement Filter

Regular price
$263.93
Sale price
$263.93
Regular price
Sold out
Unit price
per

1569656 Filter Media Upgrades

  • Standard: 80/20 Cellulose/Polyester Blend - Max Temp: 175F. (MERV 11)
  • Upgrade: 100% Nanofiber FR - Max Temp: 175F. (MERV 15)
  • Upgrade: 100% Spun Bond Polyester: - Max Temp: 200F (upgradeable to 250F).
  • (See full filter media specs here.)
Get a Speed Quote

Best offer:

1569656 Details

OEM Make: AAF
Part Number: 1569656
Dimensions: 11.50 x 16.00 x 34.50
Outside Diameter: 16.00"
Length: 34.50"
Inside Diameter: 11.50"
Top: Open
Bottom: Closed with a 0.54" bolt hole
Shape: Round
Approx. Square Footage of Filter Media: 356
Notes: The media for this AAF dust collector filter is 80/20 cellulose/polyester. (Select the 80/20 media option from the dropdown box above.) 80/20 is best to filter grinding dust, powder and dry chemical processing, and many other general manufacturing applications. Give us a call at (866) 393-0297 and we can help determine the proper filter media for your application.

Dust Collector Filter Industrial Specifications

1569656 AAF Replacement Dust Collector Filter

This canister filter-type AAF 1569656 cartridge filter element includes a end cap configuration.

Part Number Lookup: Internal cross reference for this AAF equivalent was updated February, 2016. The interchange ID is DF-3756807237-01 and conforms to a AAF replacement industrial cartridge filter for part number 1569656 and meets, or exceeds, the original AAF filter specification for compatible dust collection systems.

In addition to AAF, we make OEM Replacement filters for all the top dust collectors and industrial ventilation in the industry today. We guarantee fit and function at an unbeatable price. If you don't see the industrial filter you need, call us today at (844) 605-3266. We can cross reference any filter for your specific industiral application.
