34-86315-5035 - ECO - OEM Replacement Filter

Ready to get this over with? Try the fastest quote form in the west. We promise to respond quickly.

Questions about part number 34-86315-5035?

Jeremy, Don, Jason and Wendy are here M-F, 7am to 5pm (CST) to answer your damn filter questions.

Message us or call (844) 605-3266

DAMN Filters' industrial strength guarantee.

DAMN Filters - Curse for them by name.

Shopify secure badge

34-86315-5035 - ECO - OEM Replacement Filter

  • $158.38
SAVE EVEN MORE - Discounts apply on large orders. Get Quoted Now.

34-86315-5035 Filter Media Upgrades

  • Standard: 80/20 Cellulose/Polyester Blend - Max Temp: 175F. (MERV 11)
  • Upgrade: 100% Nanofiber FR - Max Temp: 175F. (MERV 15)
  • Upgrade: 100% Spun Bond Polyester: - Max Temp: 200F (upgradeable to 250F).
  • (See full filter media specs here.)

Filter Media Type - Select your filter media type in the dropdown box, below:

(A minimum order of 4 cartridge filters is required.)

34-86315-5035 Details

Part Number: 34-86315-5035
Dimensions: 8.38 x 12.75 x 34
Outside Diameter: 12.75"
Length: 34.00"
Inside Diameter: 8.38"
Top: Open
Bottom: Closed with 14.25" x 16.00" flange
Shape: Round
Approx. Square Footage of Filter Media: 274
Notes: The media for this Farr dust collector filter is 80/20 cellulose/polyester. (Select the 80/20 media option from the dropdown box above.) 80/20 is best to filter grinding dust, powder and dry chemical processing, and many other general manufacturing applications. Give us a call at (866) 393-0297 and we can help determine the proper filter media for your application.

American Made with Pride. US-sourced materials.
Genuine Quality: Damn filters weigh a few pounds more on average than others because of heavier, more durable, materials. We also never skimp on filter media, or reduce pleats, to save a few bucks. True industrial filters.

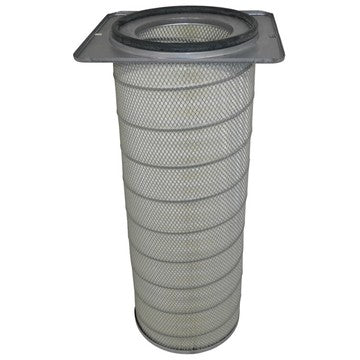

34-86315-5035 ECO dust collector filter

34-86315-5035 Filter Element: The canister filter-type ECO 34-86315-5035 cartridge filter includes; heavy gauge steel structural elements, one-piece closed cell neoprene gasket and polyurethane potting compound. Top Open end cap configuration.

Part Number History: Internal cross reference for this ECO equivalent was last updated December, 2014. Its interchange control ID is, DF-393808656-01 and conforms to the proper dimension of a ECO replacement filter for model number 34-86315-5035. It meets, or exceeds, the original ECO filter specification for compatible dust collection systems.

ECO Industrial Cartridge Filter

Dust Collector Filter Industrial Specifications

In addition to ECO, we make OEM Replacement filters for all the top dust collectors and industrial ventilation in the industry today. We guarantee fit and function at an unbeatable price. If you don't see the industrial filter you need, call us today at (844) 605-3266 . We can cross reference any filter for your specific industiral application.
