3X6-001WF OEM replacement filter for Diversitech Downdraft Table

  • $159.88
SAVE EVEN MORE - Discounts apply on large orders. Get Quoted Now.

3X6-001WF Filter Media Upgrades

  • Standard: 80/20 Cellulose/Polyester Blend - Max Temp: 175F. (MERV 11)
  • Upgrade: 100% Nanofiber FR - Max Temp: 175F. (MERV 15)
  • Upgrade: 100% Spun Bond Polyester: - Max Temp: 200F (upgradeable to 250F).
  • (See full filter media specs here.)

Filter Media Type - Select your filter media type in the dropdown box, below:

(A minimum order of 4 cartridge filters is required.)

3X6-001WF Details

OEM Make: Diversitech
Part Number: 3X6-001WF
Dimensions: 10.33 x 14.68 x 30
Outside Diameter: 14.68"
Length: 30.00"
Inside Diameter: 10.33"
Top: Open
Bottom: Closed with a 0.53" bolt hole
Shape: Round
Approx. Square Footage of Filter Media: 180
Notes: The media for this Diversitech dust collector filter is Fire Retardant 80/20. (Select the 80/20 FR version from the dropdown box above.) 80/20 FR is best to filter plasma cutting, welding and laser cutting, almost all metal processing including sandblasting and shot blasting when exhausting outside the facility. This media is chemically treated to inhibit combustion where sparks or burning particulate may reach the filter. If you are just collecting general manufacturing dust then selecting 80/20 cellulose/polyester media on this filter can save you some money. Give us a call at (844) 605-3266 and we can help you determine the proper filter media for your application.

American Made with Pride. US-sourced materials.
Genuine Quality: Damn filters weigh a few pounds more on average than others because of heavier, more durable, materials. We also never skimp on filter media, or reduce pleats, to save a few bucks. True industrial filters.

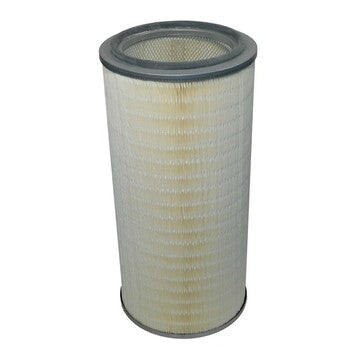

3X6-001WF Diversitech dust collector filter

3X6-001WF Filter Element: The canister filter-type Diversitech 3X6-001WF cartridge filter includes; heavy gauge steel structural elements, one-piece closed cell neoprene gasket and polyurethane potting compound. end cap configuration.

Part Number History: Internal cross reference for this Diversitech equivalent was last updated May, 2012. Its interchange control ID is, DF-92343686-01 and conforms to the proper dimension of a Diversitech replacement filter for model number 3X6-001WF. It meets, or exceeds, the original Diversitech filter specification for compatible dust collection systems.

Diversitech Industrial Cartridge Filter

Dust Collector Filter Industrial Specifications

In addition to Diversitech, we make OEM Replacement filters for all the top dust collectors and industrial ventilation in the industry today. We guarantee fit and function at an unbeatable price. If you don't see the industrial filter you need, call us today at (844) 605-3266 . We can cross reference any filter for your specific industiral application.
