523523 - Empire - OEM Replacement Filter

  • $97.01
SAVE EVEN MORE - Discounts apply on large orders. Get Quoted Now.

523523 Filter Media Upgrades

  • Standard: 80/20 Cellulose/Polyester Blend - Max Temp: 175F. (MERV 11)
  • Upgrade: 100% Nanofiber FR - Max Temp: 175F. (MERV 15)
  • Upgrade: 100% Spun Bond Polyester: - Max Temp: 200F (upgradeable to 250F).
  • (See full filter media specs here.)

Filter Media Type - Select your filter media type in the dropdown box, below:

(A minimum order of 4 cartridge filters is required.)


523523 Details

OEM Make: Empire
Part Number: 523523
Dimensions: 5.84 x 9.21 x 22.30
Outside Diameter: 9.21"
Length: 22.30"
Inside Diameter: 5.84"
Top: Open with a 10.44" lip flange (gasket under the lip)
Bottom: Closed with a 0.90" bolt hole
Shape: Round
Approx. Square Footage of Filter Media: 102
Notes: The media for this 523523 dust collector filter is 80/20 cellulose/polyester. (Select the 80/20 media option from the dropdown box above.) 80/20 is best to filter grinding dust, powder and dry chemical processing, and many other general manufacturing applications. Give us a call at (844) 605-3266 and we can help determine the proper filter media for your application.

American Made with Pride. US-sourced materials.
Genuine Quality: Damn filters weigh a few pounds more on average than others because of heavier, more durable, materials. We also never skimp on filter media, or reduce pleats, to save a few bucks. True industrial filters.

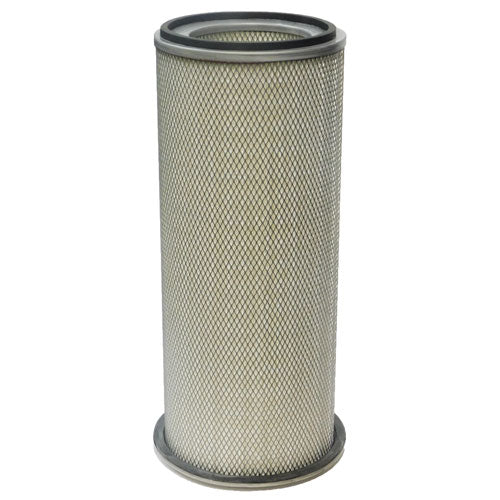

523523 Empire dust collector filter

523523 Filter Element: The canister filter-type Empire 523523 cartridge filter includes; heavy gauge steel structural elements, one-piece closed cell neoprene gasket and polyurethane potting compound. w/bh end cap configuration.

Part Number History: Internal cross reference for this Empire equivalent was last updated December, 2014. Its interchange control ID is, DF-393808740-01 and conforms to the proper dimension of a Empire replacement filter for model number 523523. It meets, or exceeds, the original Empire filter specification for compatible dust collection systems.

Empire Industrial Cartridge Filter


Dust Collector Filter Industrial Specifications


In addition to Empire, we make OEM Replacement filters for all the top dust collectors and industrial ventilation in the industry today. We guarantee fit and function at an unbeatable price. If you don't see the industrial filter you need, call us today at (844) 605-3266 . We can cross reference any filter for your specific industiral application.
