10001103 - TDC - OEM Replacement Filter
10001103 Filter Media Upgrades
- Standard: 80/20 Cellulose/Polyester Blend - Max Temp: 180F. (MERV 11)
- Upgrade: 100% Nanofiber FR - Max Temp: 170F. (MERV 15)
- Upgrade: 100% Spun Bond Polyester: - Max Temp: 275F.
- (See full filter media specs here.)
Filter Media Type - Select your filter media type in the dropdown box, below:
OEM Make: TDC
Part Number: 10001103
Dimensions: 8.38 x 12.75 x 26
Outside Diameter: 12.75"
Inside Diameter: 8.38"

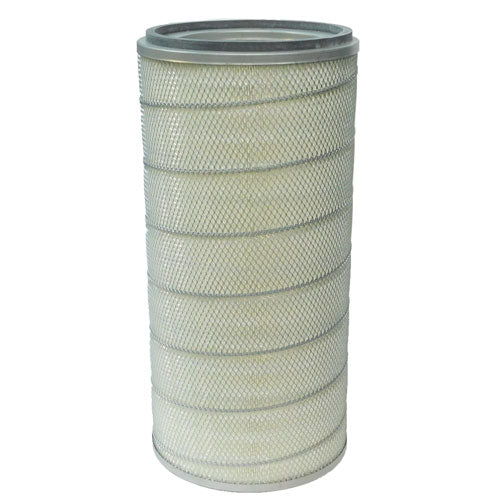

Shape: Round with an expanded metal inner/outer core
Approx. Square Footage of Filter Media: 222.64
Notes: The media for this TDC dust collector filter is 80/20 cellulose/polyester. (Select the 80/20 media option from the dropdown box above.) 80/20 is best to filter weld smoke, grinding dust, and used in many other general manufacturing applications. Give us a call at (866) 393-0297 and we can help determine the proper filter media for your application.
No Corners Cut on Materials: These damn filters weigh a pound or two more on average than the competitions' because of heavier, more durable, materials and we don't remove filter media sto save a few bucks. Quality materials make a filter last longer.
TDC dust collector filter by DAMN Filters.
Build details: Standard canister construction of the cross reference 10001103 cartridge filter includes; heavy gauge steel structural elements, one-piece closed cell neoprene gasket, polyurethane potting compound, and flame resistant 80/20 Cellulose/Polyester blend filter media. (Nanofiber or Spunbond upgrades available.)
Part number history: Our internal configuration file for this TDC filter was updated last in September 2013. Our interchange control ID is, Top Open DF-160409273-01 and conforms to the proper dimension of a TDC replacement filter for part number 10001103. It will meet, or exceed, the original TDC filter specification for compatible dust collection systems.
- Filter media upgrade available? product true
- Upgrade interchange ID: DF-8474072350781-02
- Current Pricing: $110.81
- Avg. Competitor Pricing: $128.48
- Calculated Weight 18.0 lbs.
- Filter QA check: damn from group of
- Permanent URL: https://damnfilters.com/products/oem-replacement-for-tdc-10001103-cartridge-filter
In addition to TDC, we make OEM Replacement filters for all the top dust collectors and industrial ventilation in the industry today. We guarantee fit and function at an unbeatable price. If you don't see the industrial filter you need, call us today at (844) 605-3266 . We can cross reference any filter for your specific industiral application.
